数据传输
| MAC 地址表 |
16000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 交换容量 |
150 Gbit/s |
| VLAN 数量 |
4096 |
| 最大数据传输率 |
30 Gbit/s |
环境条件
| 散热 |
375 BTU/h |
| 运行温度范围（T - T） |
32 - 104 °F |
| 工作高度 |
0 - 3048 m |
联网
| 端口镜像 |
Y |
| 流量控制支持 |
Y |
| 路由条目 |
256000 |
| 10G支持 |
Y |
| 全双工传输 |
Y |
其他功能
| 电磁辐射 |
EN55022 A, FCC A, VCCI A |
| 抗电磁 |
EN55024, EN61000-3-levels 2 & 3 XEM-1XP, XEM-12S |
| 接受频率 |
47/63 Hz |
| 网路功能 |
Gigabit Ethernet |
| 数据传输速度 |
71.4 Mbit/s |
| 电源类型 |
AC |
安全
| SSH / SSL支持 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
协议
| 支持网络协议 |
IPv4/v6, RIPv2/v6, TCP, STP, RSTP, MSTP |
| 管理协议 |
SNMP |
端口 & 界面
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口数量 |
24 |
管理功能
| 支持管理信息基本原则 |
RFC 1212, RFC 1213, RFC 1215, RFC 1239, RFC 1493, RFC 1623, RFC 2096, RFC 2790, RFC 2819, RFC 2863 |
| 支持服务质量（QoS） |
Y |
性能
| 内存类型 |
SDRAM |
| 内置存储器 |
512 MB |
| 闪存 |
32 MB |
| 可堆叠 |
Y |
设计
| 安全 |
UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| 格式要素 |
1U |

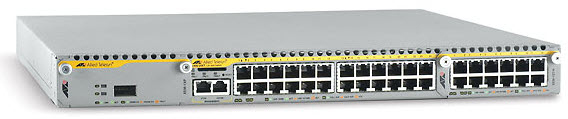

AT-x900-24XT, 2 x 30Gbps expansion bays, 24 x 10/100/1000BASE-T (RJ-45) copper ports
Unmatched Flexibility
The x900-24X Layer 3+ switches have two highspeed 30Gbps expansion bays which provide a high level of port flexibility and application versatility unmatched by any other 1RU Gigabit Ethernet switch on the market.The expansion modules can be used in a variety of configurations to provide tailored solutions that meet wideranging physical networking requirements.
10GbE expansion modules and hot-swappable XFPs provide high-speed, high-capacity fiber uplinks, with the option of either 10Gbps or 20Gbps uplink capacity to the network core. Resiliency can be achieved by using two 10GbE modules and MSTP (802.1s) for fast failover on link failure.This is suitable for wiring closet aggregation of gigabit to the desktop links and aggregating gigabit uplinks from other network switches.
Ethernet Protected Switched Rings (EPSR) and 10 GbE modules allow several x900-24X switches to form a protected ring with sub 50ms failover.This feature is perfect for high performance at the core of enterprise or provider access networks.
Combined with one or two 12-port 10/100/1000BASE-T (RJ-45) copper expansion modules, the x900-24X is ideal for gigabit to the desktop or gigabit aggregation applications. The 12 x 1000BASE-X (SFP) expansion modules offer variable port options, designed for aggregating mixed copper and fiber links in server farms and data center applications.
x900-24X Layer 3+ switches provide maximum
