管理功能
| 支持多重播放 |
Y |
| 系统事件日志 |
Y |
| 支持服务质量（QoS） |
Y |
| 网上管理 |
Y |
数据传输
| MAC 地址表 |
64000 entries |
| 交换容量 |
136 Gbit/s |
| 母线数量 |
26 |
| 封包转发率 (1 Gbps) |
1488000 pps |
| 封包转发率（10 Mbps） |
14880 pps |
| 封包转发率（100 Mbps） |
148800 pps |
| 队列数量 |
8 |
联网
| 私人 VLAN |
Y |
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 基于端口的 VLAN |
Y |
| 基于协议的VLAN |
Y |
| 流量控制支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 10G支持 |
Y |
| 全双工传输 |
Y |
端口 & 界面
| 安装SFP模块数量 |
2 |
| 基本交换 RJ-45 以太网端口数量 |
48 |
| 基本交换 RJ-45 以太网端口类型 |
10G Ethernet (100/1000/10000) |
安全
| MAC（媒体存储控制）地址过滤 |
Y |
| 存取控制清单(ACL) |
Y |

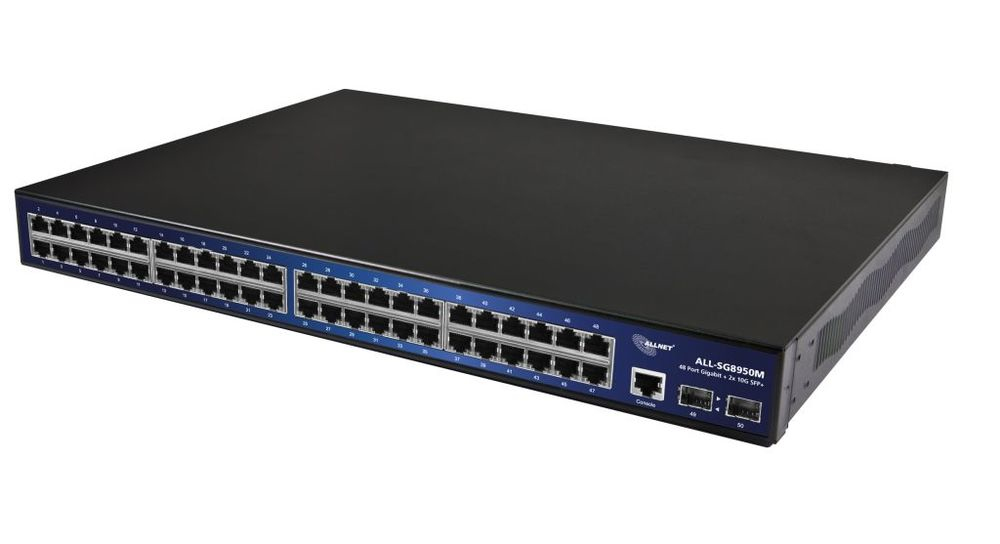

ALL-SG8950M / full managed Layer2+ 48 Port Gigabit +
- 48-Port Gigabit Copper + 2x 10 Gigabit SFP+ Ports
- 802.3az Energy Effi cient Ethernet
- 136G Non-Blocking Switching Capability
- Layer 2+ Full Managed Software Features
- 4K VLAN, 8 queues QoS, Advanced VLANs
- MSTP, LACP, LLDP, sFlow
- 802.1X, RADIUS, TACAS+, ACL
- IPv6, IPv4/v6 Multicast Filtering
Introduction
The switch is 48-port 10/100/1000Base-T + 2 10 Gigabit SFP+ Ports Rack-mount L2+ Full Management Network Switch that is designed for medium or large network environment to strengthen its network connection. The switch supports 136G non-blocking switch fabric, the 48 gigabit ports and 2 10G uplink ports can transmit and receive data traf c without any lost. The EEE feature reduces the power consumption when there is no traf c forwarding even port is still connected. The switch also supports Layer 2+ full management software features. These features are powerful to provide network control, management, monitor and security feature requests. Including rack-mount brackets, the 19“ size ts into your rack environment. It is a superb choice to boost your network with better performance and efficiency.
2x 10G Gigabit SFP+ Open Slots
The switch equips with 2 10G SFP+ open slots as the uplink ports, the 10G uplink design provides an excellent solution for expanding your network from 1G to 10G. By 10G speed, this product provides high flexibility and high bandwidth connectivity to another 10G switch or the Servers, Workstations and other attached devices which support 10G interfaces. The user can also aggregate the 10G ports as Trunk group to enlarge the bandwidth.
Advanced Security
The switch supports advanced security features. For switch management, there are secured HTTPS and SSH, the login password, configuration packets are secured. The port binding allows to bind specific MAC address to the port, only the MAC has the privilege to access the network. The 802.1X port based Access Control, every user should be authorized first when they want to access the network. AAA is the short of the Authentication, Authorization and Accounting with RADIUS, TACAS+ server. Layer 2+ Access Control List allows user to de ne the access privilege based on IP, MAC, Port number, and etc.
Full Layer 2+ Management Features
The switch includes full Layer 2+ Management features. The software set includes up to 4K 802.1Q VLAN and advanced Protocol VLAN, Private VLAN, MVR…features. There are 8 physical queues Quality of Service, IPv4/v6 Multicast Filtering, Rapid Spanning Tree protocol to avoid network loop, Multiple Spanning Tree Protocol to integrate VLAN and Spanning Tree, LACP, LLDP; sFlow, port mirroring, cable diagnostic and advanced Network Security features. It also provides Console CLI for out of band management and SNMP, Web GUI for in band Management.
