性能
| 内置电源插座 |
Y |
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 无线局域网连接 |
Y |
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |
RJ-45, 2.4 GHz, 150 Mbps, 200g
- Enables switching of the connected consumer devices (up to 16A = 3680W resistive load) via integrated web browser
- 10/100 Mbit RJ45 network connection
- Wifi IEEE802.11b/g/n with 150 Mbps
- German secured contact socket / plug
- for 200 - 250 V AC
- Controlling programmable, time-controled or manually

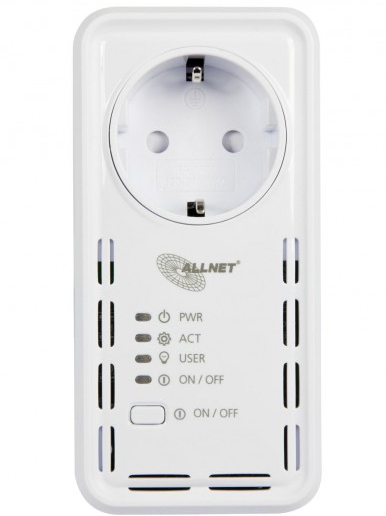

Electronical devices can be switched on and off with the ALL3072WLAN network socket via computer network. Here, the ALL3072WLAN works as an adapter socket between the power socket and an electrical consumer device. The devices is integrated into the network and receives a unique IP adress. The configuration and operation happens independently via web browser on a PC, Mac, webpad or smartphone. Addtional software is not needed.
The shifting operations are programmable, time-controled or manually. Furthermore it is possible to connect the device to other ALLENT automation solutions e.g. ALL3418v2, ALL4500, ALL3500, ALL5000, etc. as a remote shifting actor.
Besides the cable connected 10/100Mbit/s RJ45 networking interface, the ALL3072WLAN also has a wireless lan interface IEEE802.11b/g/n standard and can be integrated into wireless lan networks or connected to a PC or Laptop.
<b>Anwendungsbeispiele:</b>
- Specific contolling rebooting of PCs and servers from afar
- Reboot of routers from afar inclusive automatic reboot ( dead time programmable)
- Time-controlled elimination of useless power consumption of standby devices
- Complex shifting scenarios in connection with other ALLNET building automation products inclusive influence of temperature, humidity etc.
- Various other applications
