数据传输
| MAC 地址表 |
8000 entries |
| 存储转发 |
Y |
| 巨型帧 (Jumbo frames) |
9000 |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 支持 MAC 地址自动学习(auto-learning)功能 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |

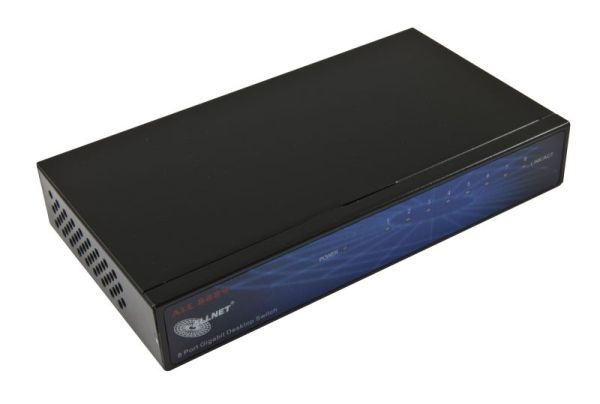

L2, 8x RJ45 10/100/1000BaseT(X), Auto MDI/MDI-X, 8000 MAC, 154,5 x 85 x 26 mm, 0.42 kg
The ALL8889 provides for small workgroups with high volume network data and the ideal basis on which to quickly transfer les in the network. Due to the non-blocking switching operation and the full-duplex mode are available on each port up to 2000 Mbit/s.
By the fanless design of the ALLNET ALL8889 be used ideally located in the of ce environment because it eliminates annoying noise. The metal casing makes the ALL8889 extremely robust.
The switch is compatible with the IEEE 802.3x standard and operates at Layer 2 basis. A total of 8K MAC memory and 9k jumbo frames ensure maximum performance in their network.
