电池
| 电池容量 |
7 Ah |
| 电池电压 |
6 V |
| 半载典型备用时间 |
9 min |
| 全载典型备用时间 |
4 min |
| 支持的的电池数量 |
4 |
性能
| 噪音水平 |
55 dB |
| UPS 拓扑 |
Line-Interactive |
能量控制
| 输入工作电压(最大值) |
300 V |
| 输入工作电压(最小值) |
170 V |
| 效率 |
80% |
| 电源输入频率 |
40/75 Hz |
| 输出功率(瓦特-安培) |
700 VA |
| 输出功率 |
438 W |
端口 & 界面
| 交流电(AC)插座类型 |
C13 coupler |
| 电源插头 |
C14 coupler |
| 交流电(AC)插座数量 |
5 AC outlet(s) |
LineInteraktive, 700 VA, 438 W, 5 x C13, 4 x 6 V 7 Ah, 18 kg, 44 x 440 x 515 mm

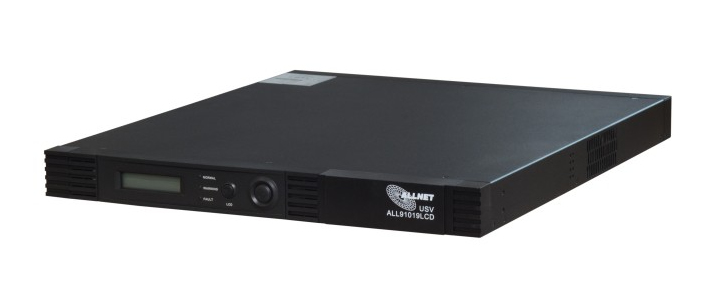

The new LCD-UPS-series of ALLNET is a further development of the proven line-interactive series. It protects sensitive loads from power outages, spikes and other power disturbances. Areas of application of this device are as a hedge for computers, telecommunications systems and other computer systems. The compact and rugged design was complemented by a comfortable LCD display for easy operation.
- UPS classification VFI-SS-311 in accordance with IEC 62040-3
- Line-Interactive-Technology
- User-friendly LCD display
- true sine wave output
- Microprocessor control
- Automatic frequency detection
- USB interface as standard
- Slot for optional adapters (USB omitted then): Relay card, optocouplers, RS-232 or SNMP
- Management software for common OS
