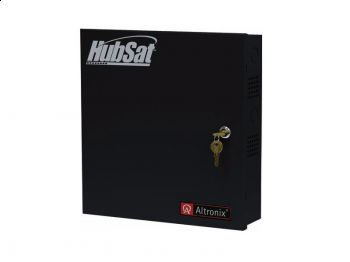

Altronix HUBSAT82D AV transmitter Black AV extender

RS422/RS485, 8 x Out, 8 x In, 750ft Max, CAT-5 Altronix HubSat82D Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a wall mount enclosure. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC fixed or PTZ cameras when utilizing Altronix HubWayAv Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC fuse protected outputs with surge suppression. Optionally, the HubSat8/8D can be used as an accessory module to transmit video from up to 8 cameras over a single CAT-5 or higher structured cable back to the HubWay, HubWayLD or HubWayLDH Passive UTP Transceiver Hubs. In addition, the HubSat8/8D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.
