性能
| DirectX版本 |
9.0 |
| OpenGL版本 |
2.0 |
| 每秒顶点 |
200 M |
内存参数
| 内存带宽（最大） |
6.4 GB/s |
| 像素管线 |
4 |
| 数据宽度 |
128 bit |

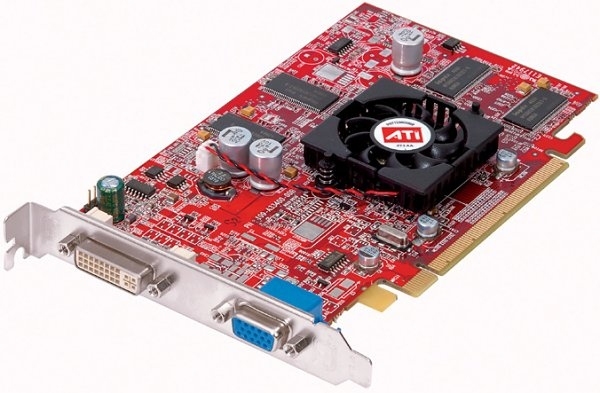

ATI FireGL V3100
-Built on ATI’s native PCI Express x16 lane architecture
-Outstanding entry-level workstation performance and quality utilizing 4 pixel pipelines and 2 geometry engines
-128 MB DDR unified graphics memory
-Dual display support via DVI and VGA outputs
-Optimized and certified for professional workstation applications based on OpenGL® and Microsoft® DirectX® 9.0
-Windows® and Linux® support
-Three year warranty with toll-free advanced technical support
PCI Express Innovation Has Arrived
The ATI FireGL™ Visualization series of workstation graphics accelerators is designed specifically for the new, high-bandwidth PCI Express® bus, and is architected to deliver unprecedented speed and image quality for real-time visualization. True cinematic quality rendering of complex geometry is now available for compelling animation, visual effects, mechanical design and leading-edge business communication.
Two Way Acceleration With ATI’s Single-Chip PCI Express Solution
The bridgeless, single-chip design of the ATI FireGL native PCI Express graphics processor fully engages all of the benefits of this interconnect standard in the safest, most cost effective, and most reliable transition from AGP. Unlike other ‘bridged’ PCI Express implementations, ATI’s FireGL PCI Express products deliver full bandwidth in both upstream and downstream directions, doubling the capabilities of previous products.
Compatibility And Stability
ATI’s FireGL cards — whether PCI Express x16 lane or AGP 8X — are designed to accelerate 3D workstation applications based on OpenGL® and Microsoft® DirectX® 9.0. With full certification on the leading computer aided design (CAD), architecture/engineering/ construction (AEC) and digital content creation (DCC) applications, ATI FireGL is the high performance choice for graphics professionals working in Windows® or Linux® based systems.
