管理功能
| 支持多重播放 |
Y |
| 系统事件日志 |
Y |
| 支持服务质量(QoS) |
Y |
| 网上管理 |
Y |
数据传输
| MAC 地址表 |
8000 entries |
| 支持数据传输率 |
10, 100,1000Mbps |
| 交换容量 |
52 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
| VLAN 数量 |
4000 |
| 队列数量 |
8 |
联网
| 端口镜像 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 10G支持 |
N |
端口 & 界面
| 控制台端口 |
RJ-45 |
| Combo SFP 端口数量 |
4 |
| 基本交换 RJ-45 以太网端口数量 |
22 |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| SFP/SFP+端口数量 |
4 |
协议
| 管理协议 |
HTTP, RMON, SNMP v1/v2c/v3, Telnet |
环境条件
| 运行温度范围(T - T) |
32 - 104 °F |

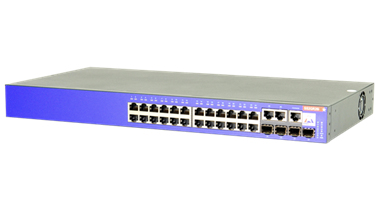

24 port Gigabit Managed Layer 2/4 Switch
The SS2GR26i is a fully featured Gigabit Layer 2/4 switch that is ideal for deployment both at the core and the network edge to provide full gigabit speeds throughout the network. With 24 gigabit copper ports, and 4 dual-interface combo ports that support both copper and fiber connections, the switch allows for multiple gigabit connections to the network core.
Comprehensive QoS, feature rich VLAN functions (Voice VLAN, Q in Q, VLAN VPN, etc),enhanced security, classified bandwidth control, link aggregation, this switch has all of the features you could ask for, and is also easy to configure and manage through single IP management (up to 24 units, also work with layer 3 10G switches from Amer.com) and industrial standard CLI shell and Web GUI.
