数据传输
MAC 地址表 |
8000 entries |
支持数据传输率 |
10, 100,1000Mbps |
交换容量 |
176 Gbit/s |
最大数据传输率 |
10 Gbit/s |
VLAN 数量 |
4000 |
队列数量 |
8 |
静态路由数量 |
512 |
联网
VLAN支持 |
Y |
IGMP侦听 |
Y |
链路汇集 |
Y |
IP地址表 |
2000 |
生成树协议 |
Y |
流量控制支持 |
Y |
动态主机配置协议客户 |
Y |
动态主机配置协议服务器 |
Y |
10G支持 |
Y |
端口 & 界面
基本交换 RJ-45 以太网端口数量 |
46 |
以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10GBASE-T, 10BASE-T |
控制台端口 |
RJ-45 |
SFP/SFP+端口数量 |
4 |
Combo SFP 端口数量 |
4 |
协议
管理协议 |
HTTP, RMON, SNMP v1/v2c/v3, Telnet |
环境条件
运行温度范围(T - T) |
32 - 104 °F |

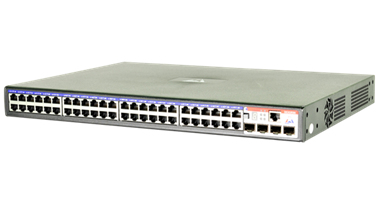

48 port Gigabit Managed Layer 3 switch w/ 10GB & IP stacking
Gigabit L3 switch series with 44 copper gigabit ports + 4 ports combo gigabit copper / SFP ports, 2 X 10Gb stacking ports + 2 open slots for 10Gb modules
The SS3GR50i is designed to operate at the core of an Enterprise network. These full featured switches are ideal for aggregating servers in the distribution layer of three tier networks, with high performance wire speed L2 switching and IPv4 and IPv6 L3 routing. 2 x 10Gb expansion ports using optional modules allow you to future proof your network. 8 units can be hardware stacked via an optional 10GB stacking cable offering up to 384 Gigabit ports per stack. IP stacking allows you to manage up to 36 units across your network with 1 IP address to form a solid backbone solution.
