性能
| 频道/通道 数量 |
4 |
| 频段 |
2.412 - 2.484 GHz |
| 接收机灵敏度 |
-96dBm @ 802.11b\n-91dBm @ 802.11g\n-91dBm @ 802.11n |
| 以太网的数据传输率 |
10, 100 Mbit/s |
端口 & 界面
| DC-IN插口 |
Y |
| 广域网接口 |
Ethernet (RJ-45) |
天线
| 可拆式天线(S) |
Y |
| 天线增益水平(最大值) |
5 dBi |
| 天线类型 |
External |
| 集成天线 |
N |
| 天线数量 |
2 |
另外
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |
| 数据传输率(最大) |
100 Mbit/s |

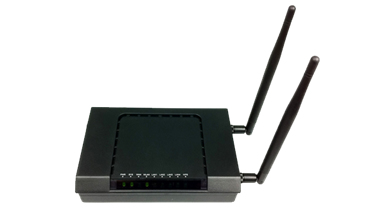

802.11n 300Mbps Access Point with PoE, 4-port RJ-45, External, Black
The WAP220N is a dual radio wireless access point supporting IEEE802.11n as well as backward compatible with IEEE802.11b/g.
The unit is a perfect choice for SOHO, SMB or enterprise applications. It supports 5 operation modes that include AP mode, WISP, Repeater, Client and Router modes. With its built in DHCP, WDS and a variety of other features that provide high flexibility in wireless deployment.
The WAP220N supports passive PoE with the included injector that allows for the flexible and easy installation of the unit where there is no accessible power source to power the unit.
