Fixed Matrix Switchers HDTV/8 x 4, Component Video BNC, Stereo Audio 5T Phoenix-style
OVERVIEW

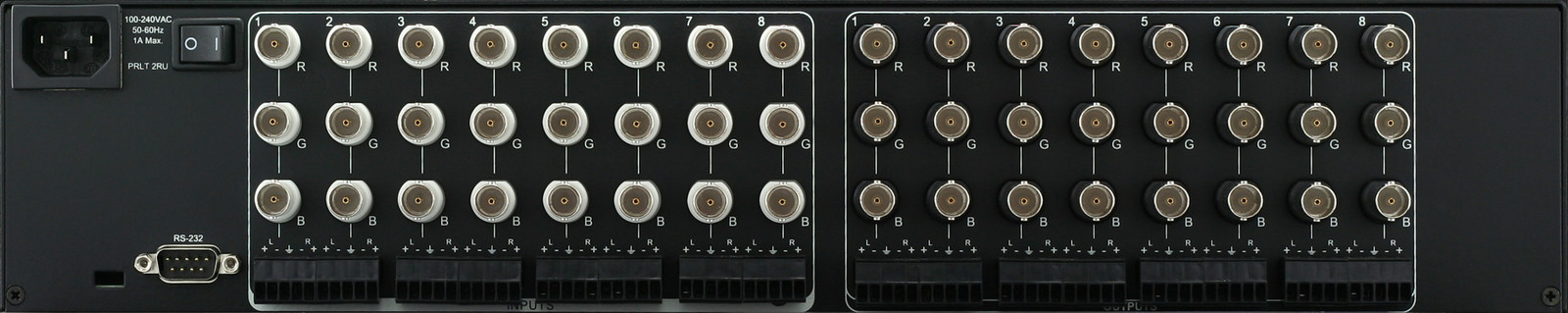

The professional solution for HD signal distribution, the Precis LT component + stereo matrix switchers are designed to route HDTV/Component video and stereo audio signals. Video input and output signals are connected via BNC connectors. Balanced and unbalanced audio signals are supported and connected via 5T Phoenix-style connectors. The Precis LT's front control panel allows for fast and convenient input and output selection. The standard RS-232 control port utilizes AutoPatch's BCS serial control protocol which allows it to be quickly and easily programmed when integrated into a control system. Available in I/O sizes from 4x4 to 8x8, the Precis LT provides a minimum of 300 MHz (±3 dB) video bandwidth when fully loaded.
COMMON APPLICATION
Easily connect multiple HDTV sources such as DVD players and satellite receivers to multiple displays; such as in sports bars or lobby applications.
FEATURES
- Ultra-flat video bandpass curve measured at a tight ±3 dB
- 300 MHz bandwidth, fully-loaded worst case scenario
- Supports the highest analog resolutions on the market, including but not limited to HDTV resolutions up to 1920 x 1080p
- Audio connections support balanced and unbalanced audio
- Audio breakaway to route audio-follow-video, video or audio alone
- Superior video crosstalk specifications ensure signal isolation and security
- Standard RS-232 control port
- Supports AutoPatch's simple BCS serial control protocol
- Optional TCP/IP control via external APWeb module
- Includes simple X/Y front mounted control panel
- Front panel security lockout
- Ships with free APControl to provide easy single-user PC control of the matrix switcher
- Rack mounting ears included
