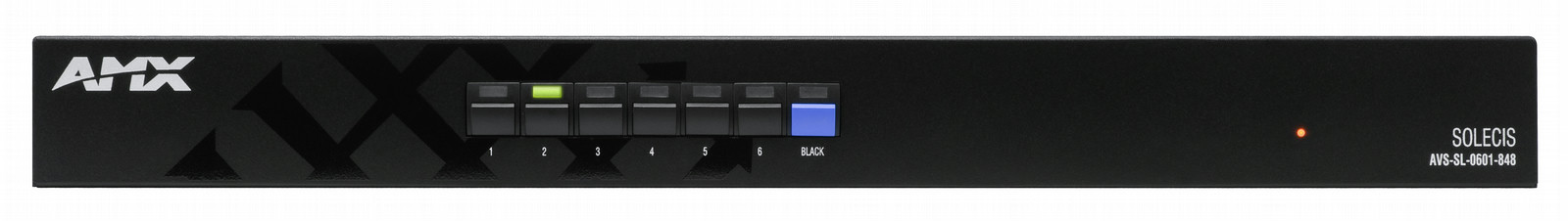

AVS-SL-0601-848 - 6x1:2 RGBHV HD-15, Stereo Switcher, Black
The Solecis AVS-SL-0601-848 is a wideband, high-resolution, 6x1:2 HD-15 and audio switcher that incorporates two simultaneously driven outputs for connection to long cable runs. Control of the AVS-SL-0601-848 is from the front panel, via RS-232, or it can be set to operate in auto-switch mode, which will switch the source to the last detected sync input. The audio switcher will follow the video selected input and is stereo unbalanced-to-balanced out. The AVS-SL-0601-848 features an internal 100-240V power supply and is housed in a 1U metal enclosure.
<b>COMMON APPLICATION</b>
The AVS-SL-0601-848 is a 6x1 HD-15 is a perfect fit for boardroom applications where a host PC and several visiting laptop inputs need to be switched to a single display.
<b>FEATURES</b>
- Inputs: 6
- Outputs: 1:2 (displays selected input on two buffered outputs)
- Video Type / Connector Style: RGBHV, HD-15
- Bandwidth: 400 MHz
- Buffered Monitor Output on HD-15
- Stereo Audio
- Front Control Panel
- Signal-Present-Based Auto-Switching
- RS-232 Control
