设计
| 3.5" 托架数量 |
8 |
| 5.25" 托架数量 |
3 |
| 类型 |
PC |
| 外部5.25“托架数量 |
3 |
| 最大CPU散热器高度 |
177 mm |
| 最大显卡长度 |
428 mm |
| 格式要素 |
Midi-Tower |
| 侧窗 |
Y |
| 扩展插槽数 |
7 |
| 内部3.5英寸托架数量 |
7 |
| 2.5" 托架数量 |
9 |
冷却
| 最大前部风扇 |
2 |
| 支持的底部风扇直径 |
140, 120 mm |
| 前部风扇安装 |
1x 140 mm |
| 液体冷却能力 |
Y |
| 最大底部风扇 |
2 |
| 最大顶部风扇 |
2 |
| 支持的后部风扇直径 |
120 mm |
| 安装的后部风扇 |
1x 120 mm |
| 最大后部风扇 |
1 |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |

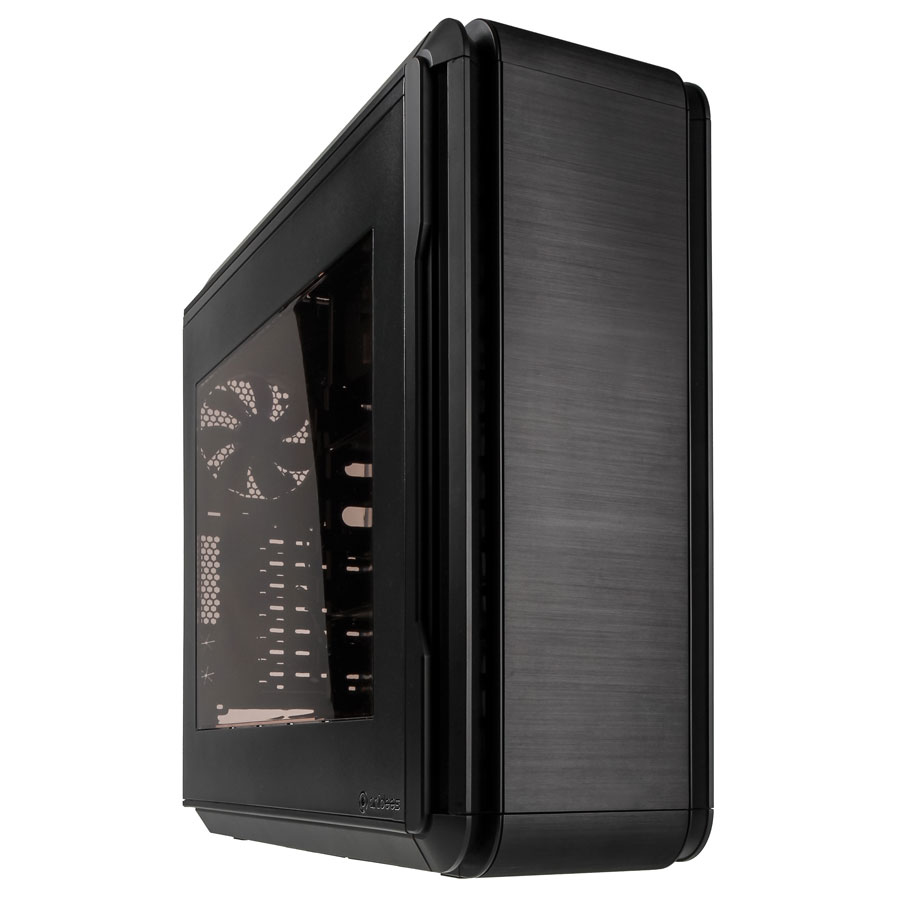

Midi Tower Case, M-ITX / M-ATX / ATX, 3x 5.25” Hidden Drive Bays, 7x 3.5” Hidden Drive Bays, 1x 3.5” Exposed Drive Bay (converted from one 5.25’’ Drive Bay), 9x 3.5” Drive Bays (8 from 3.5”HDD Cage,1 from SSD cage behide the MB tray), 1x 140mm Front Fan included, 1x 120mm Rear Fan included, 2x USB3.0, 2x USB2.0, SD Card reader, 7x Expansio Slots, Aluminum /Steel body / Plastic + Mesh bezel, Black Window
<b>Pre-insulated mid-tower design with aluminum elements, USB 3.0,SD Card Reader, Removable HDD cages and lots of ventilation options.</b>
- Rotate door with Aluminum line-finished for elegant look.
- Moveable front mesh design for ventilation and easy maintenance.
- Accommodates 120 mm radiator in the rear, 120/140mm radiator in the bottom or 240 mm radiator on the top or front.
- Dust filters on the front and at the bottom.
- Rear retaining holes for water cooling kit.
- Cable management and CPU retaining hole for easy maintenance.
- Air cooling support 6 fans, 140mm fan*5, 120mm fan*1.
- Supports up to 140 mm fan x 5.
- New Velcro fastener design for better power supply stability.
- USB 3.0*2, USB 2.0*2, SD Card reader, Fan controller on the top.
- Smoky Transparent side window.
