其他功能
| 硬盘尺寸 |
2.5 " |
| 支持处理器前端总线 |
667, 800, 1066 MHz |
| 液晶显示器功率 |
Y |
端口 & 界面
| 串口数量 |
1 |
| DVI端口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| HDMI端口数量 |
1 |
内存参数
| 支持的内存类型 |
DDR2-SDRAM |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
4 GB |
联网
| 无线局域网连接 |
N |
| 网路功能 |
Gigabit Ethernet |
设计
| 机箱板型 |
Desktop |
| 冷却方式 |
Passive |
另外
| 主板晶片 |
Intel GM45 |
| 图形适配器 |
GMA X4500MHD |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

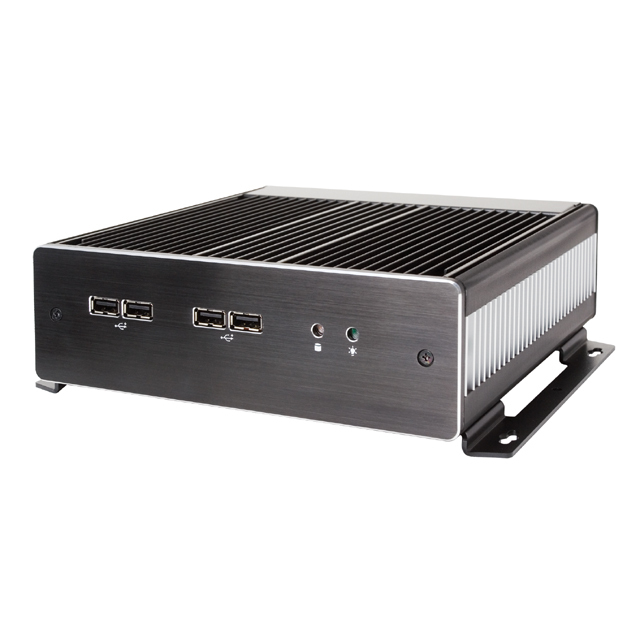

DEX4501, Intel Socket P slot, Intel GM45 + ICH9M, max 4GB 200-pin So-DIMM DDR2, 3 x SATAII 2.5" HDD bay, Intel GMA X4500 MHD, 7.1ch. HDA, Gigabit LAN, mini-ITX, 2.85kg, Black
DEX4500 Series
Small Form Factor and low power consumption design
- 2.4L compact size: 200mm(L) x 200mm(W) x 60mm(H).
- Under 90W low power consumption with MoDT technology.
- Fanless design robust thermal solution.
Excellent performance
- Supports Intel® Core™ 2 Duo P8000, P9000 series TDP 25W dual core CPU with 667/800/1066MHz FSB.
- Intel® GM45+ICH9M chipset with GMA X4500MHD graphics engine, supports Microsoft® DirectX™ 10.
- Supports dual channel SO-DIMM DDR-II 667/800MHz memory up to 4GB.
Reliable features for applications
- Robust, rugged mechanical design with anti-shock and anti-vibration properties.
- Wide power range support from DC 12V~20V Input in most of industrial environments.
- Supports Watch Dog Timer function.
- Microsoft® Windows™ XP Embedded image service available
Multimedia features for Digital Signage
- Supports HDMI interface with HDCP protocol for high definition content output.
- Supports dual display through HDMI and DVI connectors.
- Full HD 1080p video playback ability.
- 7.1 channel audio output.
Extension features
- Supports SATA 2.0 2.5” internal hard disk drive.
- Provided e-SATA connector for external device such as hard disk drive or optical drive.
- Provided eight USB 2.0 ports for easy connect to most peripherals.
- Two mini Card slots for function extension.
- Provided RS232 port.
- Gigabit networking.
