重量和尺寸
| 放大器尺寸（宽x深x高） |
430 x 290 x 88 mm |
| 卫星音箱尺寸（宽x深x高） |
135 x 135 x 100 mm |
| 卫星扬声器重量 |
790 g |
| 超重低音炮重量 |
2100 g |
| 超重低音扬声器尺寸（宽x深x高） |
246 x 246 x 97 mm |
卫星音箱
| 卫星音箱数量 |
4 |
| Satellite speaker woofer diameter (imperial) |
4 " |
| 卫星功率有效值 |
60 W |
| 卫星扬声器频率范围 |
100 - 20000 Hz |
| 卫星扬声器阻抗 |
16 Ω |
| 卫星扬声器灵敏度 |
103 dB |
| 卫星音箱峰值功率 |
120 W |
超低音音箱
| Subwoofer driver diameter (imperial) |
8 " |
| 超重低音功率有效值 |
160 W |
| 超重低音频率范围 |
50 - 200 Hz |
| 超重低音炮阻抗 |
16 Ω |
| 超重低音喇叭敏感度 |
88 dB |
技术细节
| 扬声器置放位置 |
Ceiling-mountable |
| 墙壁支架 |
Y |
扩音器
| 输出功率放大器 |
160 W |
| 放大器频率范围 |
10 - 40000 Hz |
| 声音扩增 |
33 dB |
| 扩增设备类型 |
Amplifier |
| 扩增设备电路板 |
Stand-alone |
| 扩增设备 |
Y |
| 总谐波失真 |
0.05% |

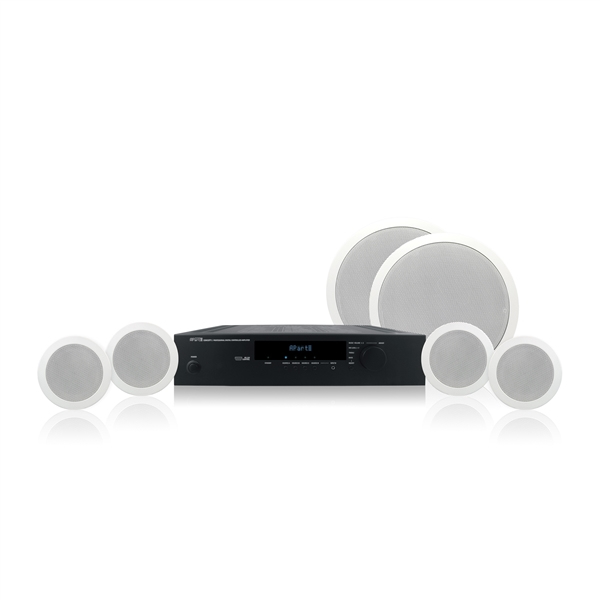

1 x CONCEPT1 (2-zone, RMS 160 W,RS232, 8 Ohm, Black), 4 x CM4 (CM4, 10.16 cm (4 ") , 100 Hz - 20 kHz, White ), 2 x CMSUB8 (2 x 8 Ohm, 160 W, SPL 107 dB, IP 54, 50 - 200 Hz)
SHOPSETI is the ideal ceiling speaker and amplifier solution for background music in small retail, professional or residential environments.
The CM4 build-in speakers fit discretely in every interior and design style. The CONCEPT1 amplifier has all the professional features like lockable user and installer settings, RS-232 or paging possibilities.
Apart CM4 loudspeakers are equipped with a back can. This makes them especially suitable for strip ceilings or ceilings with perforated tiles. The back can prevents that the air displaced by the speaker cone ‘escapes’ through the gaps or perforations in the ceiling. The result is a much better sound quality. The CMSUB8 subwoofer is ideal for circumstances where you cannot work with an on-wall subwoofer but still want to obtain a rich, bass sound.
We would recommend SHOPSETI for use in shops, boutiques, mini-mart, hair stylist, art gallery, waiting room,...
