其他功能
| 接口 |
DB-9 RS-232, Smart-Slot |
| 输入连接器类型 |
Hard Wire 5-wire (3PH + N + G) |
| 输出连接器 |
1x Hard Wire 5-wire (3PH + N + G)\n1x Screw Terminals |
| 额定输入电压 |
208 V |
| 输出电压说明 |
Configurable for 208 and 220V - 3 Phase |
电池
| 热插拔电池 |
Y |
| 电池充电时间 |
5 h |
| 电池类型 |
VRLA |
能量控制
| 电源输入频率 |
40/70 Hz |
| 输出功率(瓦特-安培) |
15000 VA |
| 输出功率 |
12000 W |
环境条件
| 非运行高度 |
0 - 15000 m |
| 工作高度 |
0 - 999.9 m |

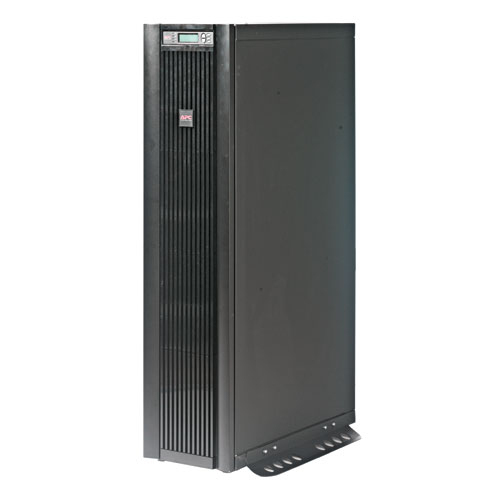

Smart-UPS VT 15kVA 208V w/2 Batt Mod., Start-Up 5X8, Int Maint Bypass, Parallel Capable
Availability
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Battery replacement without tools
Allows quick, easy battery replacement.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Shippable with modules installed
Enables pre-installation UPS staging and testing and faster installation.
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
