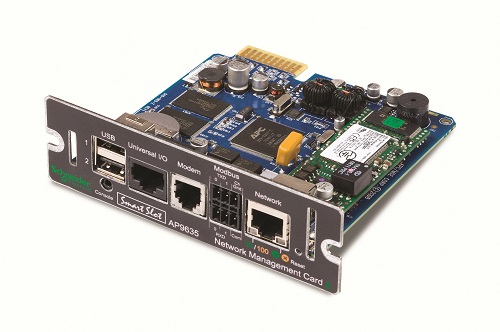

APC UPS Network Management Card 2

HTTPS/SSL, SSH, SNMPv3, IPv6, USB, RS-485, 121 x 108 x 38 mm, 140 g Command line interface
Offers simultaneous remote management access through Telnet and SSH

Compatible with SmartSlot enabled UPSs
Compatible with all SmartSlot UPSs

Device Encryption
Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3

Expandable Input and Output Ports
Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory

IPv6 Support
Capable of operating on a network using IPv6 protocol

Modbus RS-485 and Modbus TCP support
Enables remote monitoring and interfaces with StruxureWare™ Data Center Expert, building management systems, or other third-party systems.

Multiple language support
Web browser interface available in English, German, Russian, Simplified Chinese & Japanese

Multiple user access
Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users

Out of Band UPS Management Support
Supports dial-out notifications and dial-in access via a modem to the console interface.

Smart Battery Management Support
Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).

Standard UPS RFC 1628 MIB Compatible
Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.

UPS Firmware Update
User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

UPS Network Management CardsFeatures & Benefits

Manageability

Scheduling
Customize shut down and reboot of connected equipment and UPSs.

Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.

Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.

Data logging
Identify problematic trends before they escalate or export the data log for analysis.

Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Total Cost of Ownership

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

Browser accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.

Availability

Reboot equipment remotely
Saves dispatching technicians to remote locations.

Protection

Radius support
Use an existing radius server to securely authenticate, authorize, and account for your APC device.

PowerChute Network Shutdown
Reliable network-based shutdown of multiple servers

Password security
User-selectable password protection prevents unauthorized access, authorized against LDAP and Active Directory servers.

Multi-tier user access
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.

Marketing Features

Reboot equipment remotely
Saves dispatching technicians to remote locations.
Fault notification

Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.

Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB

Remote device management
Enable management of your UPS by connecting it directly to the network.

Browser Accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.
