Copper, nickel-plater, plexiglass, stainless steel, G1/4

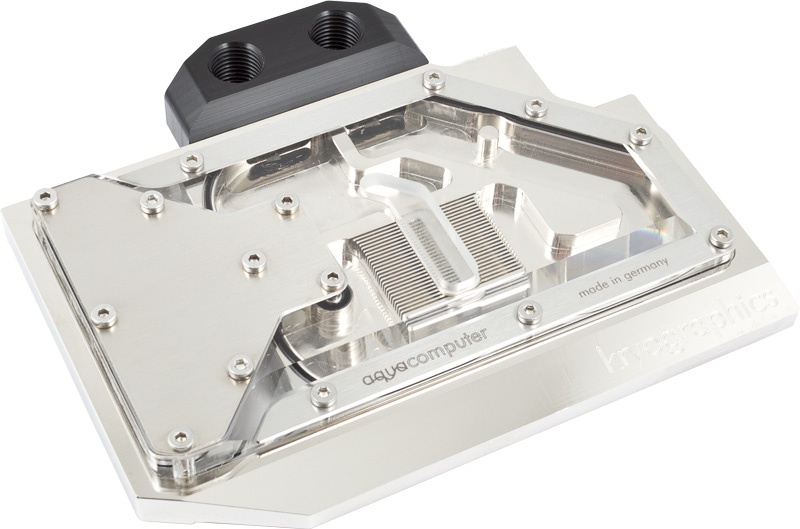

Combined GPU / RAM / VRM-cooler for graphics cards of the type Radeon RX 480 with 8GB or 4GB GDDR5 reference design. This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat watercooler.
Thanks microstructure with jet plate can kryographics for RX 480 boasts having excellent values in terms of performance and flow rates. Parallel to the GPU and the voltage regulator are cooled, the coolant is guided through the acrylic lid. Through precise manufacturing are cooled directly as a coupling agent in kryographics GPU and RAM with thermal grease. This ensures the best possible connection between the graphics card and cooler. All relevant contact surfaces are polished, thus ensuring a perfect heat transfer. For the voltage regulator, a thermal pad of very high quality is provided. All mounting threads are equipped with spacers in nickel plated brass to prevent the graphics card can not be forgiven practical and the assembly is very easy.
The kryographics series is equipped with a new Delrin connection terminal, the and over prior to the aquagrafx series over a significantly larger cross-section thus has a lower resistance to flow. This is fixed by the side with 3 screws and offers the possibility to screw connections from both sides. According to two tube cap are included. The connection threads are G1 / 4. The connection terminal can be exchanged for kryoconnect direct connection kit (Art 23551, 23552 or 23553, not included.) For Crossfire operation.
