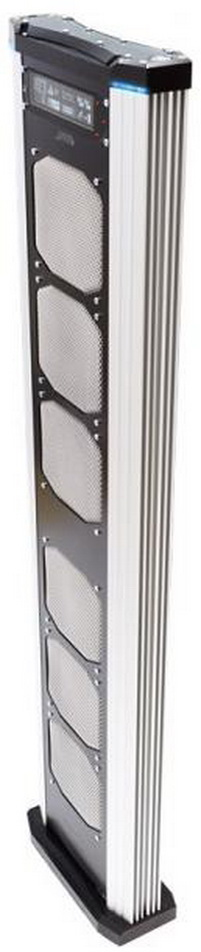

aquaduct 720 XT mark V external water cooling system
The aquaduct 720 XT Mark V ceramic belongs to the fifth generation of the successful aquaduct XT series. Primary objectives of the development of the aquaduct XT series were a convincing design and an outstanding cooling capacity while maintaining a minimal noise level. The aquaduct is easy to use, reliable and extremely compact.
The aquaduct is a combination of a passive and an active radiator through which the advantages of both technologies join together in a product. For easy maintenance, the passive cooling profiles on the sides of the aquaduct contain high volume reservoirs. Inside the aquaduct, the active cooling component is composed of a large radiator with microprocessor controlled fans. Ball valves are integrated in the base of the aquaduct, allowing the user to disconnect the aquaduct from the PC without draining the aquaduct.
The aquaduct 720 XT mark V ceramic contains a microprocessor controlled 12 V Pump with a ceramic bearing, two triple radiators and a sophisticated control logic, designed specifically for external water cooling systems. The controller of the aquaduct mark V series features a graphic LC display and can either be operated using the touch buttons on the aquaduct itself or using the IR remote control which is included in delivery. The IR remote control can also be used to control the PC itself (keyboard and mouse function, USB connection between PC and aquaduct required). Furthermore, for perfect integration into your home entertainment system, the aquaduct XT mark V series is also equipped with an IR transmitter. Controlling and monitoring features of the mark V series include flow monitoring, multiple temperature sensors, programmable fan controllers and an USB interface. The variable RGB lighting feature, integrated into the top of the aquaduct and visible from the side as well as inside the reservoirs, can be configured individually. The completely redesigned aquasuite 2012 software allows you to configure your own set of values to display on the main screen and thereby gives you an even better overview of the current status of your cooling system.
The aquaduct XT mark V series is shipped with a PCI(e) slot bezel to be installed into the PC. In addition to connecting the aquaduct to the PSU of the PC, the attached PCB features an additional fan connector as well as two temperature sensor inputs, an artificial speed signal output and a potential-free relay contact. Speed signal and / or relay contact can for example be used for emergency shutdown of the PC by either using the PC's BIOS to monitor the speed signal or turning off the PSU using an additional "aquaero power connect" cable, not included in delivery. Two holes in the bezel can be used to pass the hoses into the PC case.
Important notice:
The maximum heat dissipation of 1400 W does not mean that you require a 1400 W PSU but that the aquaduct 720 XT mark IV is able to dissipate approximately 1400 W of thermal power. This value correlates with a coolant temperature of approximately 15 °C above ambient temperature at full fan speed. In many cases, coolant temperatures of 30 °C above ambient temperature will also be acceptable, allowing the aquaduct to dissipate approximately 2800 W of thermal power. The aquaduct itself has a power consumption of approximately 20 W for pump, fans and controller.
Details:
- Radiator: two airplex PRO 360 radiators.
- Fans: airstream 120 mm, temperature controlled or manually configured.
- Pump: 12 V, microprocessor controlled with adjustable power and monitoring functions.
- Controller: Stand-alone control unit with graphic LC display, USB 2.0 interface.
- Internal temperature sensors for coolant inlet and outlet temperature, air inlet and outlet temperature.
- Internal flow sensor.
