性能
| 处理器插座 |
Socket AM3+, Socket AM2+, Socket AM4, Socket FM2+, Socket FM1 |
| 脉冲宽度调制 (PWM) 支持 |
Y |
| 最大气流 |
45 cfm |
| Noise level |
0.4 sone |
| 制冷瓦量（最大） |
90 W |
| 气流 |
77 m³/h |
| 转速（最小） |
500 RPM |
| 转速（最大） |
2000 RPM |
| 类型 |
Cooler |
| 适用于 |
Processor |
| 风扇数量 |
1 fan(s) |
| 风扇直径 |
92 mm |

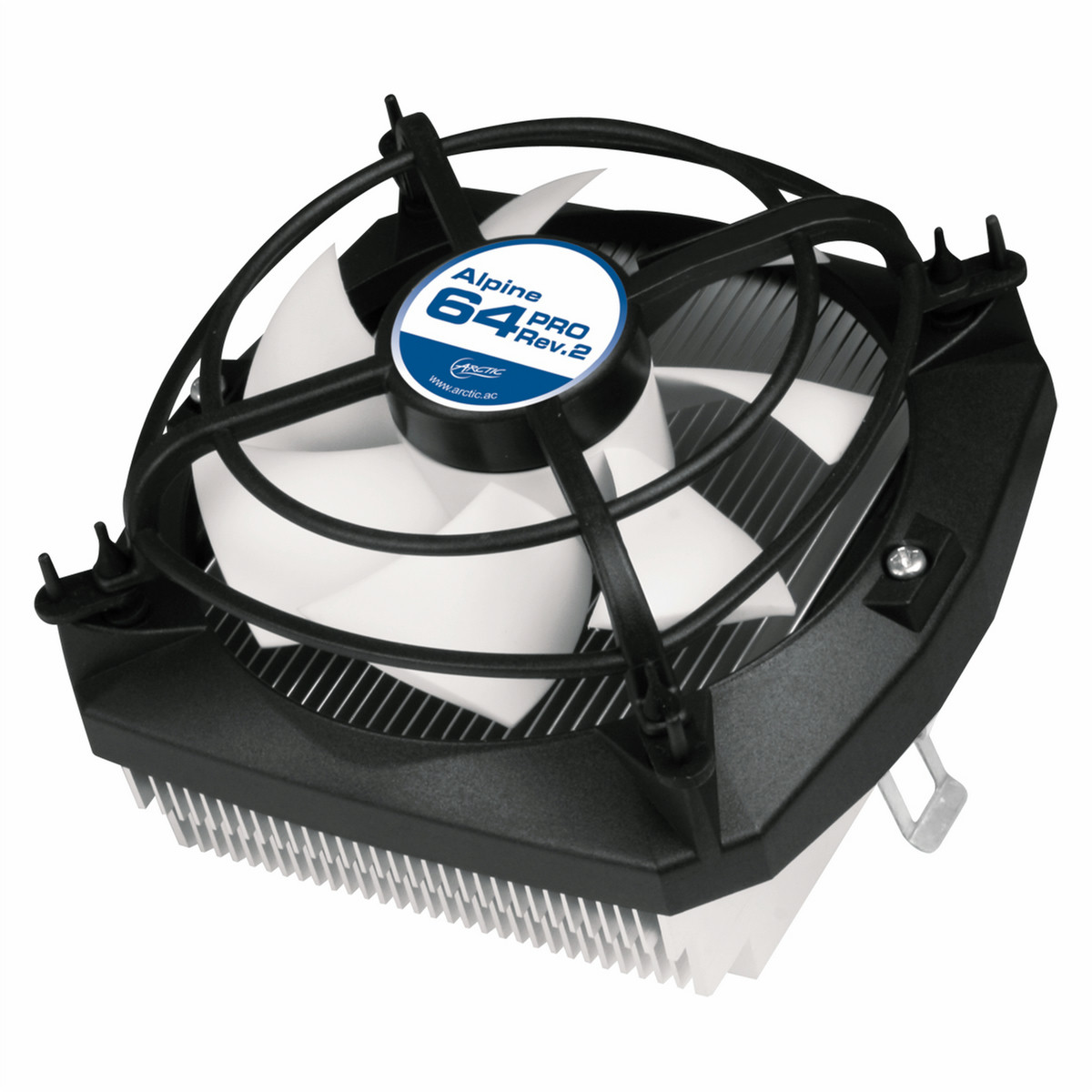

Alpine 64 PRO Rev.2, Ø 92 mm, 500 - 2000 RPM, 0.4 Sone, 45 cfm
Excellent Cooling Performance
A 92 mm PWM fan on an aluminum extrusion heatsink in combination with pre-applied MX-2 high performance thermal compound provide good cooling performance and improve heat transfer from the CPU. In a test conducted by Dragon Steel Mods, the Alpine 64 PRO successfully reduced the CPU temperature of an Intel Q6600 by 6 degrees.
Ultra Quiet
Its low noise impeller, patented fan holder and anti-vibration parts ensure the fan to work quietly even under full load.
The test done by TweakTown has shown that the Alpine 64 PRO Rev.2 is 14 dBA and 9 dBA lower than the AMD and Intel boxed cooler respectively at full load.
Thanks to the PWM control, the fan speed adjusts according to the CPU temperature and thus the noise level remains at an absolute minimum which qualifies it as a silent cooler.
Wide-compatibility
The Alpine 64 PRO features wide compatibility with AMD sockets. Its simple mounting system is designed to fit most of today's CPUs. Alpine 64 PRO Rev.2 is compatible with AMD Sockets FM2+, AM2, FM1, AM3+, AM3, AM2+, AM2, and 939.
Vibration Absorption
The patented vibration absorption fan holder is the key to keep the Alpine 64 PRO inaudible. It absorbs vibration caused by the spinning of the fan and thus it's barely heard even when it's running at full speed.
Installation - quick, easy, reliable
The mounting of the Alpine 64 PRO Rev.2 is absolutely transport proof, the MX-2 thermal compound already pre-applied onto the heatsink. New in Rev.1.1: The installation is significantly easier and even quicker - Put it on (clips hook in automatically), fasten the screws - ready.
