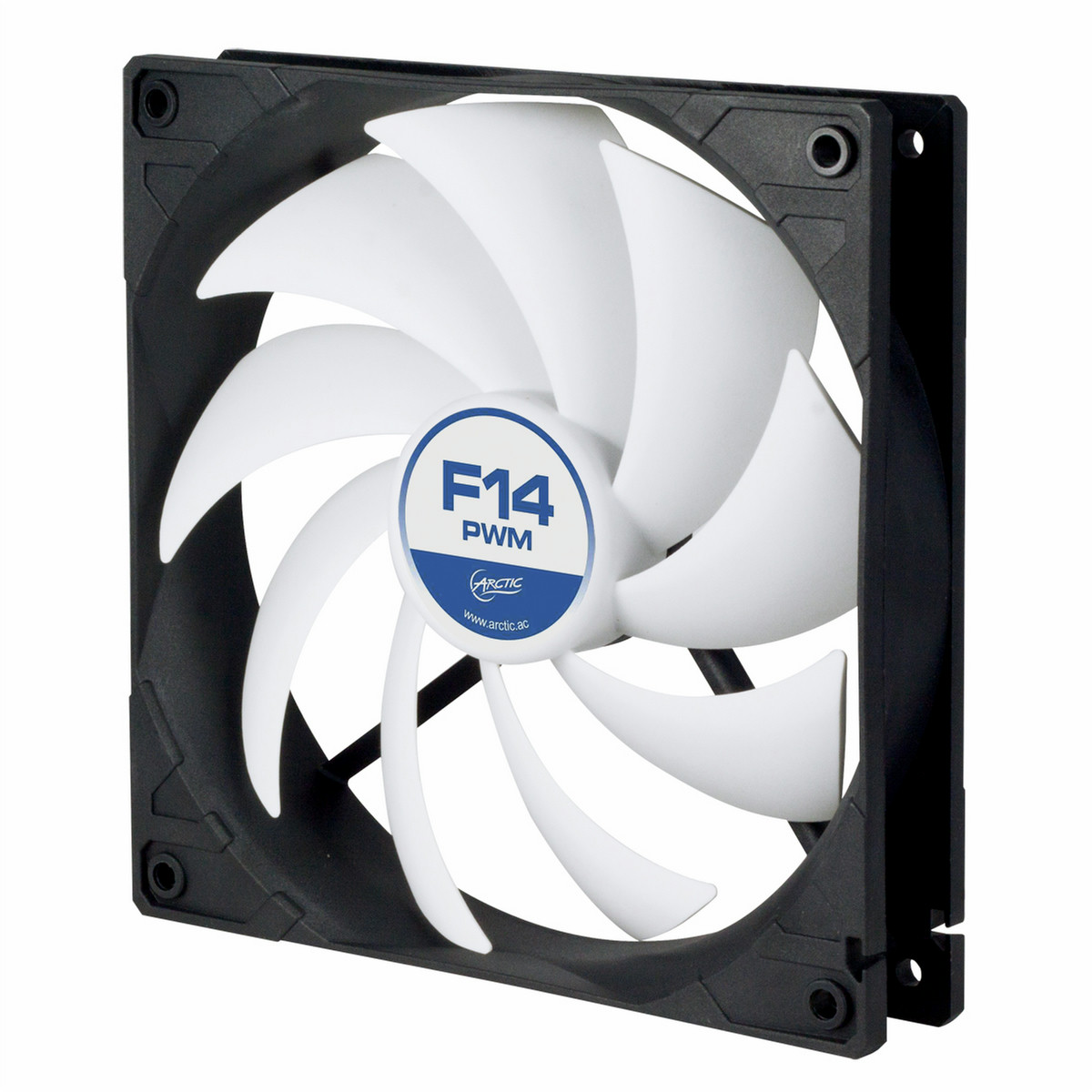

ARCTIC F14 PWM 4-Pin PWM fan with standard case

ARCTIC F14 PWM 4-Pin PWM fan with standard case

EAN: 872767008526
MPN: ACFAN00078A
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

性能

转速(最大) 1350 RPM
适用于 Computer case
处理器插座 Not supported
脉冲宽度调制 (PWM) 支持 Y
最大气流 74 cfm
气流 126 m³/h
噪音水平(高速) 24.5 dB
风扇直径 140 mm
类型 Fan
风扇数量 1 fan(s)

技术细节

安装孔模式(高x V) 125 x 125 mm
风扇连接器 4-pin

能量控制

额定电流 0.3 A
电压 12 V

内容包装

螺丝包括 Y
F14 PWM, 1350 RPM, 74 cfm, 1.3 Sone, 140 x 27 x 140 mm, 4-pin Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.

Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

Fan Controller Made in Germany
The ARCTIC F14 PWM fan is well known for high airflow at a comfortable noise level. The real improvement is the motor and controller. Our German engineers made this fan work at lower speed when performance is not needed. Often motherboards don't provide PWM signals below 40% and thus make PCs unnecessary loud - not so with the F14 PWM.

Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
