能量控制
| 输入电流 |
3.0 A |
| 效率 |
82% |
| 保持时间 |
17 ms |
| 总功率 |
550 W |
认证标准
| 安全 |
CUL (Level 6) / CE / CB |
Payment Saving Unit.

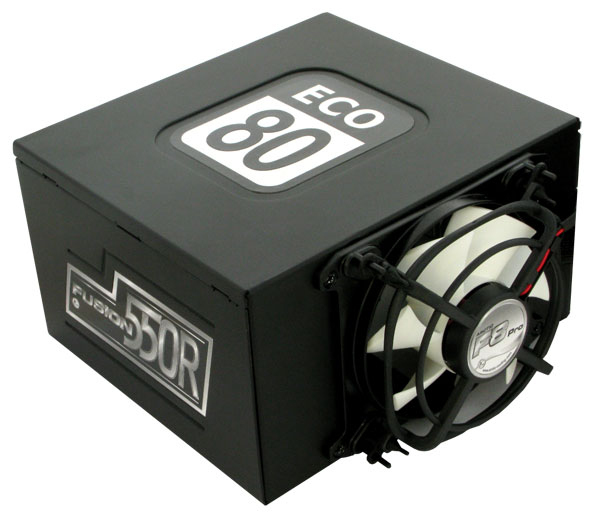

Fusion 550R follows the default ATX-Form-Factor and thus will fit into every ATX PC-Case. It fulfils the ATX 2.2 specifications and can offer a continuous power of 550 Watt - enough for every Highend System. Equipped with two 6-pin- and 8-pin PCIe connectors the PSU is ideal for powering a Crossfire- or SLi-setup.
Main features:
- Ultra quiet 80mm PWM fan with low noise impeller.
- 550W output power, ATX 2.2.
- 82-86% efficiency, 99% PFC.
- 80mm ARCTIC F8 Pro fan.
- Intelligent fan control (700 – 2,000 RPM).
- Controller for case ventilation.
- Over-Power, Over-Voltage, Short Circuit protection.
- Over-Current Protection.
- SLI and Crossfire compatible.
High Efficiency = Less Power Loss = Quiet Cooling.
With an efficiency of at least 82 to 86%, less heat is generated inside the PSU. As a result of this a single 80-mm-fan is enough to cool the PSU. The rubber-mounted fan is spinning in a range between 700 and 2000 RPM making it virtually silent. Additionally to this the PSU comes along with two external fan-connectors giving the possibility to control the case ventilation based on load and temperature and thus lowers the noise level of the complete system to an absolute minimum.
Effective energy-use preserves nature and saves money .
By making appreciated use of natural resources, especially energy you can contribute to lower CO2-Emissions. Additionally you save electricity cost of about 100 €, so the Fusion 550R is a true Payment Saving Unit.
Save and stable PSU.
With a PFC-factor of 99 % and two separated 12-volt-rails, which are supporting each other if necessary the Arctic Fusion 550R is a very save PSU, that manages to come along with highest demands. The overload, overvoltage and short-circuit protection safeguards the hardware as well as the user from damage.
