安装
| 屏幕尺寸最大的兼容性 |
30 " |
| 屏幕尺寸最小的 兼容性 |
13 " |
| 安装接口兼容性（最小） |
75 x 75 mm |
| 安装界面相容性（最大） |
100 x 100 mm |
| VESA 安装系统兼容界面 |
75 x 75, 75 x 100, 100 x 100, 100 x 75 mm |
| 支持的显示器数量 |
1 |
| 最大承重量(最大载重能力) |
20 kg |
| 适用于 |
Computer monitor / TV |
人体工程学
| 距离墙（最大） |
100 mm |
| 旋转角度 |
60 ° |
| 内置水平仪 |
Y |
| 改良型电缆管理 |
Y |
| 倾角 |
-15 - 15 ° |
包装数据
| 包装盒厚度 |
190 mm |
| 包装重量 |
899 g |
| 安装套件 |
Y |
| 包装盒宽度 |
130 mm |
| 包装盒高度 |
91 mm |
另外
| 产品色彩 |
Black |
| 包装类型 |
Box |
| 自转 |
360 ° |
13"-30", 20 kg max, VESA 75/100, 360°

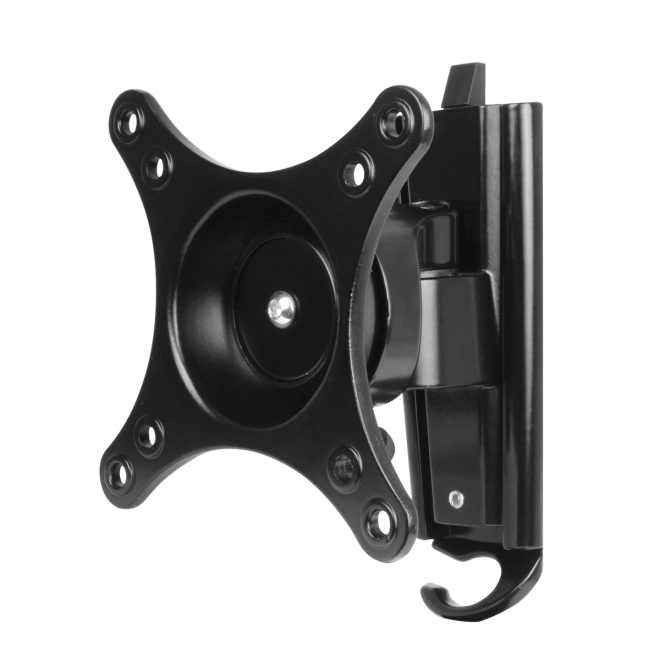

The ARCTIC W1A is a single pivot 3 axis articulation bracket mount, offers smooth adjustable screen angle with 360° rotation, 60° swivel and ±15°tilt. The ball joint design gives the flexibility to perfectly position your monitor to reduce eye, neck, shoulder and back strain. It mounts closely to the wall and maximise your work area. Compatible with monitors from 13" to 30", the two-piece direct mounting system allows quick installation and support up to 20 kg in weight.
Maximise Your Workspace
The monitor close-wall mount system takes the least space on your desk and thus maximises your work area. It is also an ideal solution for touch screen applications.
Smooth Finger Adjustable Screen
The ARCTIC W1A wall-mount is integrated with a smooth ball-joint design, which delivers the most flexibly adjustable screen angle with 360° rotation, 60° left-right swivel and 15° afterward and backward tilt.
Perfect positioning to reduce eyes, neck, shoulder and back strain
The ball joint design allows easy finger adjustment, giving the flexibility to adjust your monitor to a perfect position, hence prevent undue eye, neck, shoulder and back strain with optimal viewing position.
Sturdy and Stable
The ARCTIC W1A ensures a secure mounting system to your monitor. Equipped with security lock and two screw-lock system to prevent slipping and enhance stability.
Quick-Fix Two-piece Direct Mount
The 2 –pieces direct mount system is designed for quick and easy installation. Simply Screw the mounting on your wall and monitor, assemble by slide it in the mounting rail.
Cable Management
The simple design cable management hook keeps your cable neatly together behind your monitor.
VESA 75 / 100
With the VESA 75 x 75 / 100 x 100 compliant mounting brackets, it is designed for monitors from 13" to 30" with up to 20kg of weight. Compatible with all popular desktop monitor such as LG, Viewsonic, HP, NEC, AOC and Dell.
