端口 & 界面
| 数字I / O引脚的数量 |
14 |
| 脉宽调制数字I / O引脚 |
6 |
| 模拟I / O引脚的数量 |
6 |
| 无线局域网连接 |
N |
处理器
| 微控制器型號 |
ATmega328 |
| 微控制器頻率 |
16 MHz |
内存参数
| SRAM（静态随机存取存储器） |
2 KB |
| EEPROM（电子抹除式可复写只读存储器） |
1 KB |
| 闪存 |
0.032 MB |
产品特点
| 每I / O引脚的直流电流 |
40 mA |
| 格式要素 |
Arduino |
| 工作电压 |
5 V |

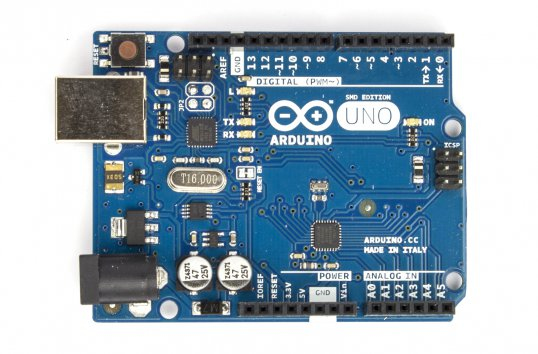

UNO SMD Rev3, ATmega328, 14 Digital I/O Pins, 6 Analog Input Pins, 6 PWM Digital I/O Pins
The Arduino Uno SMD R3 is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip.
Additional features coming with the R3 version are:
ATmega16U2 instead 8U2 as USB-to-Serial converter.
1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
stronger RESET circuit.
"Uno" means "One" in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.
