背板输出端口
| 串口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| PS/2连接埠数量 |
2 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| 并行ATA连接器 |
1 |
| 前面板音频接头 |
Y |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| 周边（莫仕）电 源连接器（4针） |
1 |
| SATA II连接器数量 |
4 |
| 软盘驱动器接口 |
Y |
| 风扇电源接头 |
Y |
| ATX电源接头 |
Y |
联网
| 蓝牙 |
N |
| 无线局域网类型 |
Not supported |
性能
| 音频系统 |
Realtek ALC662 |
| 组件应用 |
PC |
| 主板芯片组系列 |
AMD |
| 主板南桥 |
AMD SB710 |
内存参数
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
图像
| 图形适配器系列 |
AMD |
| 板载图形适配器 |
Y |
| 最大图形显示内存 |
512 MB |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI 插槽 |
2 |
| PCI Express × 1插槽 |
1 |
另外
| 系统总线 |
5.2 GT/s |
| 图形适配器 |
Radeon 3000 |
| 主板晶片 |
AMD 760G |
| 以太网路(RJ-45)连接接口数量 |
1 |

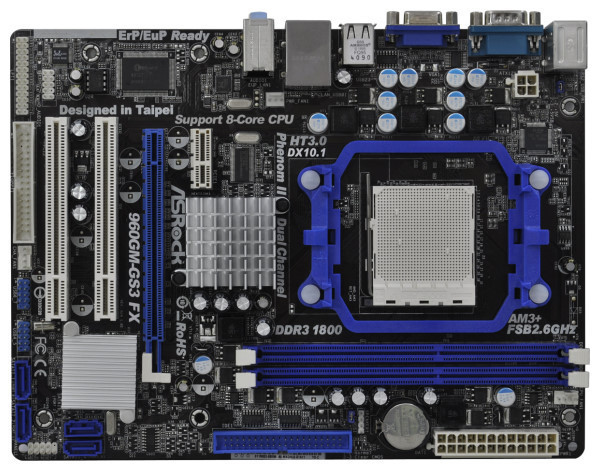

AM3+ Processor, Dual Channel DDR3 1800, 1 x PCI Express 2.0 x16 slot, Integrated AMD Radeon 3000, 10/100/1000 Mb/s, 5.1 CH HD Audio
<b>XFast LAN Technology</b>
ASRock XFast LAN is a smart productivity tool to help you manage your priorities of internet applications, simplify your digital life and accomplish more. The innovative features include : Internet Application Prioritization, Lower Latency in Game, Traffic Shaping and Real-Time Analysis of Your Data. It's the smartest way to control your web programs.
<b>ASRock XFast USB Technology - Faster Than Your Imagination!</b>
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 2.0 performance up to 5X faster!
<b>AM3+ 8-Core Processor Support</b>
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
<b>Free Bundle - Cyberlink MediaEspresso 6.5 Trial</b>
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
<b>MAGIX Multimedia Suite</b>
The ultimate solutions to enhance your media experience. From music management, music creation, video editing to photo management. Simply do more with your media than you ever thought possible.
<b>THX TruStudio</b>
THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
<b>ASRock App Charger</b>
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
<b>ASRock SmartView</b>
It is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep in touch with friends on-the-go.
<b>OC DNA</b>
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
<b>Instant Boot</b>
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
<b>Instant Flash</b>
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
<b>OC Tuner</b>
ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance.
