性能
主板元件 |
Micro ATX |
主板芯片组系列 |
Intel |
音频输出通道数量 |
7.1 channels |
英特尔® 极限内存认证标准 (Intel® XMP) |
Y |
可信任平台模组(全面生产管理) |
Y |
PC健康监测 |
CPU, FAN, Temperature, Voltage |
音频系统 |
Realtek ALC892 |
组件应用 |
PC |
认证 |
FCC, CE, WHQL, ErP/EuP |
冷却方式 |
Passive |
内存参数
可支持内存时钟速度 |
2133, 2400 MHz |
无错误检测和更正 |
Y |
错误更正代码 |
Y |
无缓冲内存 |
Y |
支持的内存类型 |
DDR4-SDRAM |
内存通道支持 |
Dual |
内存插槽类型 |
DIMM |
支持的内存模块容量 |
4GB, 8GB, 16GB |
內存插槽数量 |
4 |
最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
BIOS内存大小 |
128 MB |
基本输入输出系统类型 |
UEFI AMI |
ACPI的版本 |
6.0 |
处理器
SMP(适用于表面安装的封装形式)处理器的最大数量 |
1 |
处理器插槽 |
LGA 1151 (Socket H4) |
英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-6xxx, i5-6xxx, i7-6xxx |
兼容处理器 |
Celeron, Core i3, Core i5, Core i7, Pentium |
内置输入/输出系统
USB 2.0接口 |
2 |
ATX电源接头 |
Y |
TPM(可信任安全平台模组)接口 |
Y |
USB 3.0(第 1代3.1)连接器 |
1 |
SATA III连接器数量 |
6 |
PS电源接口 (8针) |
Y |
CPU风扇接口 |
Y |
机箱防盗接口 |
Y |
机箱风扇接头数量 |
2 |
前面板音频接头 |
Y |
M.2 (M) 插槽数量 |
2 |
图像
DirectX版本 |
12.0 |
并行处理技术支持 |
2-Way CrossFireX, 4-Way CrossFireX |
分立图形支持 |
Y |
最大分辨率 |
4096 x 2160 pixels |
HDCP |
Y |
联网
网路唤醒功能 |
Y |
局域网控制器 |
Intel i219 PHY |
以太网接口类型 |
Gigabit Ethernet |
内容包装
包含电缆 |
SATA |
用户手册 |
Y |
包括驱动器 |
Y |
包括的实用程序 |
Y |
捆绑软件 |
ASRock APP Charger\nASRock XFast LAN\nASRock EZ Mode\nASRock Full HD UEFI\nASRock My Favorites in UEFI\nASRock Instant Flash\nASRock Internet Flash\nASRock Crashless BIOS\nASRock UEFI Tech Service |
快速安装向导 |
Y |
背板输出端口
DVI-D接口数量 |
1 |
USB 3.0(第 1代3.1)Type-C 端口数量 |
1 |
PS/2连接埠数量 |
2 |
USB2.0端口的数量 |
2 |
耳机输出端口 |
1 |
麦克风/音频输入插孔 |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
3 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
1 |
扩展槽
PCI 插槽 |
1 |
PCI Express X16(Gen 3.x)插槽 |
2 |
PCI Express x1(Gen 3.x)插槽 |
1 |
处理器的特殊功能
英特尔®快速同步视频技术 |
Y |
英特尔® 内线™ |
Y |
英特尔® 清晰视频技术 |
Y |
英特尔®Turbo Boost技术 |
2.0 |
另外
InTru™3D技术 |
Y |
主板晶片 |
Intel B250 |
Intel Optane technology ready |
Y |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

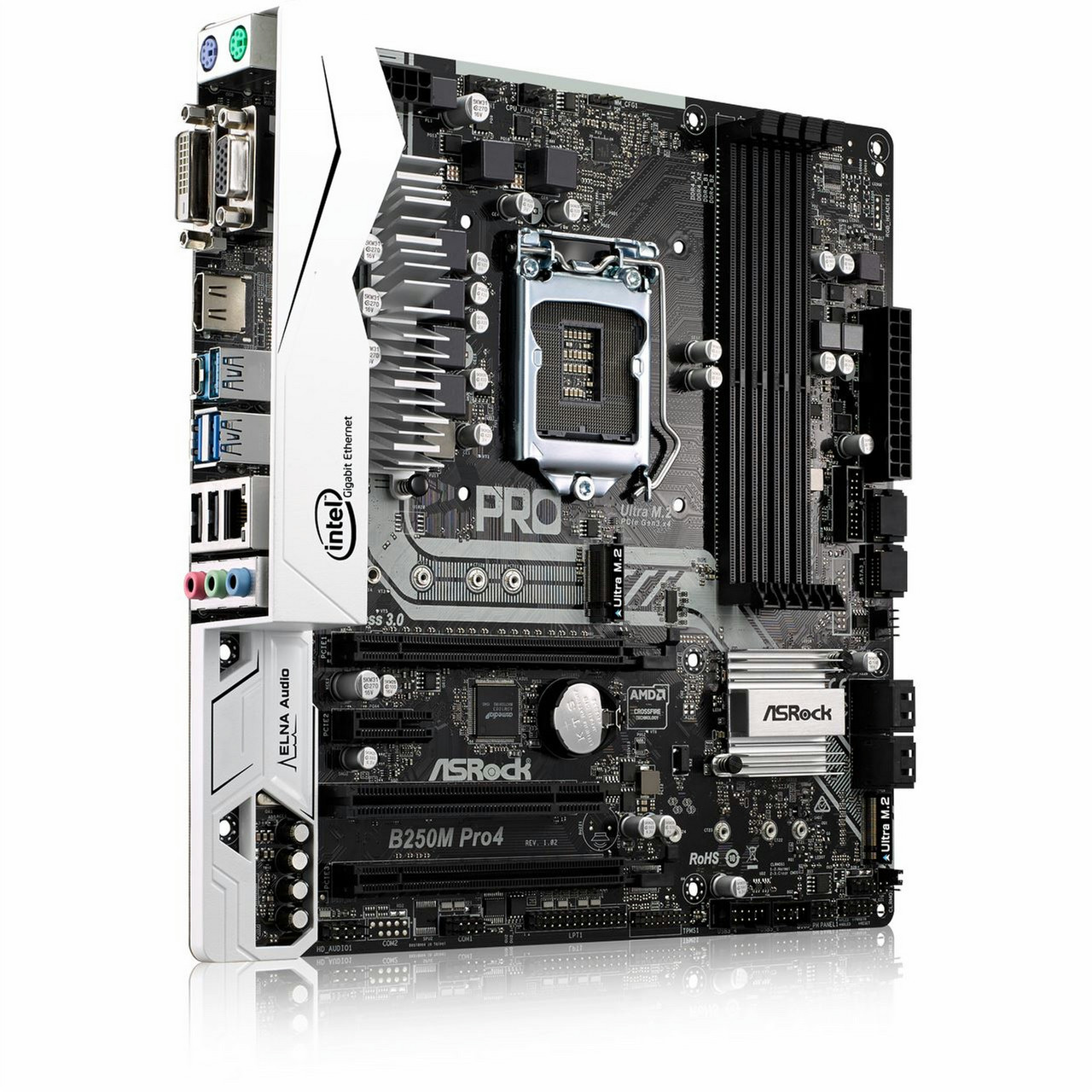

Intel B250, Socket 1151, Intel Core i7/i5/i3/Pentium/Celeron, 4x DDR4 DIMM 64GB, 128MB AMI UEFI, 7.1 HD Audio, AMD Quad CrossFireX, 2x PCI Express 3.0 x16, 6x SATA3, Gigabit Ethernet, 2x PS/2, D-Sub, DVI-D, HDMI, SPDIF, 4x USB 3.0 Type-A/C, 2x USB 2.0, Micro ATX
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems
Dual Ultra M.2 For SSD
Two of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redenes a new standard of high performance and responsiveness.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
User friendly UEFI & EZ Mode
ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
