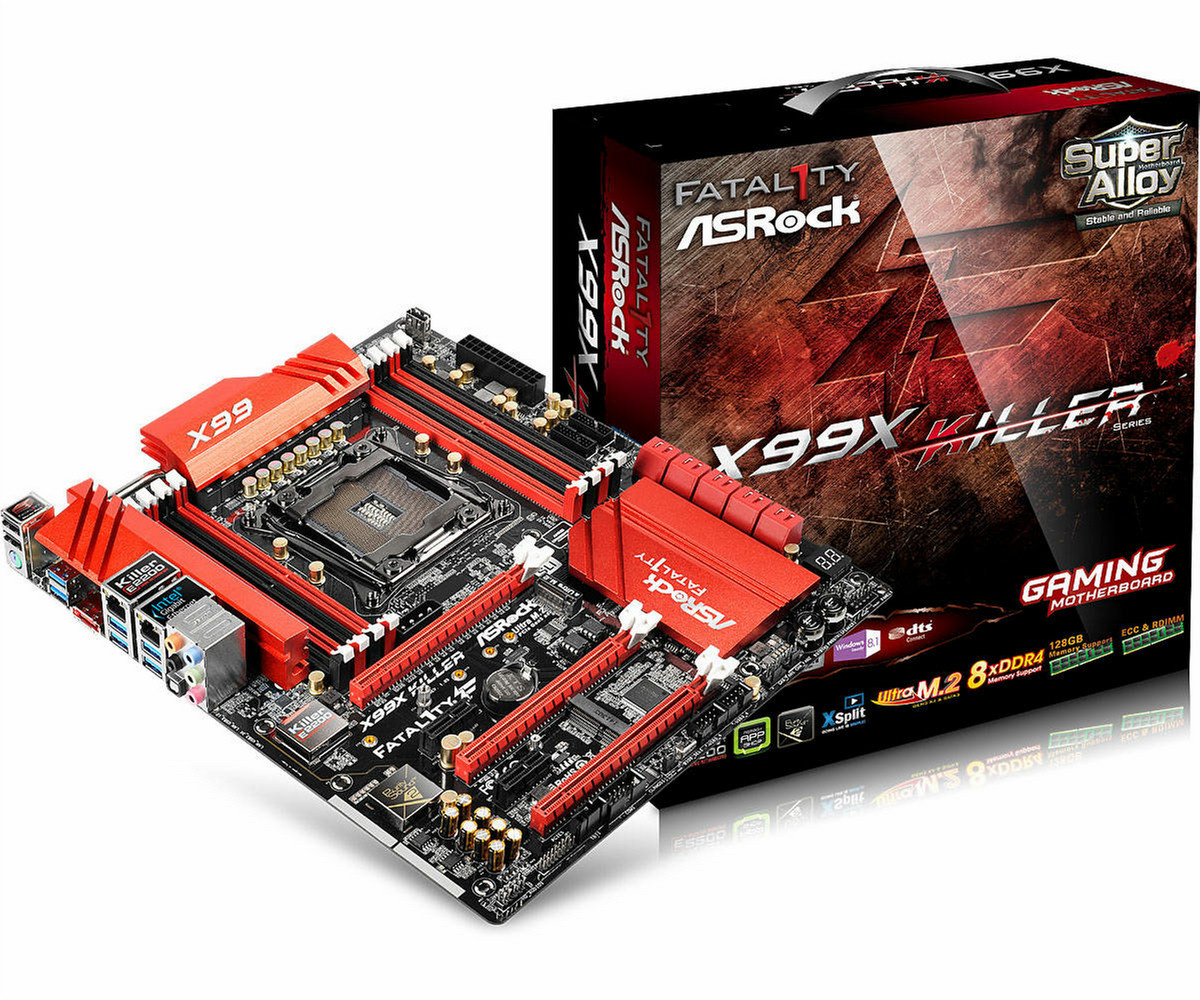

Asrock Fatal1ty X99X Killer Intel X99 LGA 2011-v3 ATX

Chipset Intel X99, Socket LGA 2011-v3, 8 x DIMM DDR4, 128GB, non-ECC, ECC, unbuffered memory, UEFI AMI BIOS, ATX ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Gaming Armor
- CPU Power - Hi-Density Power Connector + Ultra Dual-N MOSFET + Multiple Filter Cap
- Memory - 15μ Gold Contact in DIMM Slots
- VGA Card - 15μ Gold Contact in VGA PCIe Slot, PCIe Power Connector
- Cooling - XXL Aluminum Alloy Heatsink + 2oz Copper PCB + Heat Pipe Design
- Internet - Intel® LAN + Qualcomm® Atheros® Killer LAN
- Audio - Purity Sound™ 2
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power, 12 Power Phase design, Multiple Filter Cap (MFC)
- Supports Quad Channel DDR4 3000+(OC) memory with max. capacity up to 128GB
- Supports ECC*, RDIMM Memory (*ECC is supported with Intel® Xeon® processors)
- 3 PCIe 3.0 x16, 2 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX™ and NVIDIA® 3-Way SLI™
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
- Intel® Gigabit LAN + Qualcomm® Atheros® Killer LAN
- 10 SATA3, 1 eSATA, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 10 USB 3.0 (4 Front, 6 Rear), 7 USB 2.0 (4 Front, 1 Back, 1 Fatal1ty Mouse Port, 1 Vertical Type A)
- 1 COM Port Header, 1 Thunderbolt™ AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, ASRock Cloud, APP Shop, F-Stream, Key Master, XSplit

<b>No Lag, Just Frag!</b>
ASRock Killer Series features the Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.

<b>Killer Network Manager</b>
Use Qualcomm Atheros Killer Network Manager to classify and prioritize online games, HD video and high quality audio for better quality and fewer interruptions in your online experience.
See which applications are hogging bandwidth and tune performance for each, so they don't interfere with your online gameplay or other streams. Monitor and manage the health and performance of your gaming rig with graphical displays, detailed logging and complete redesigned user interface.

<b>XXL Aluminum Alloy Heatsink Design</b>
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.

<b>Premium 60A Power Choke</b>
Compared to traditional chokes, ASRock’s new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.

<b>Premium Memory Alloy Choke</b>
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.

<b>Ultra Dual-N MOSFET</b>
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.

<b>Nichicon 12K Platinum Caps</b>
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
* Tested under industry standard 105 degree Celsius ambient temperature.

<b>Sapphire Black PCB</b>
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

<b>Ultra M.2 (PCIe Gen3 x4)
The World’s Fastest M.2 Socket - PCIe Gen3 x4</b>
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.

<b>Supports DDR4 ECC / RDIMM Memory Modules</b>
This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
* ECC is supported with Intel® Xeon® processors.

<b>128GB Memory Support</b>
Designed to meet the maximum computing power system, this motherboard adopts Quad-Channel 8 DDR4 DIMM slots. Each slot supports 16GB memory module, thus delivering a maximum capacity up to 128GB.

<b>Wake On WAN</b>
The latest technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.
* Only for certain motherboards that support wake on wan

<b>Fatal1ty Mouse Port</b>
Fatal1ty Mouse Port is a customizable technology for PC gamers that is a part of F-Stream. After plugging the USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can use Fatal1ty’s personal preferred mouse polling rate at 500 Hz. F-Stream also provides the flexibility for gamers to adjust the mouse polling rate from 125 Hz to 1000 Hz. This is helpful for professional gamers to experience smoother game play and faster response time.

<b>F-Stream</b>
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities, including Key Master, Fatal1ty Mouse Port, EZ OC, Auto Tuning, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!

<b>HDD Saver Technology</b>
There's a dedicated 4-pin HDD Saver Connector placed near the SATA ports. By connecting it to the HDDs, you can shut down or turn on the HDDs via software when needed. HDD Saver Technology secures more privacy, saves more energy, and extends HDD life.

<b>Surge Protection</b>
Protects the motherboard from excessive surges from the power supply unit.

<b>Lightning Protection</b>
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.

<b>ESD Protection</b>
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.

<b>USB Key</b>
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

<b>Restart to UEFI</b>
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

<b>ASRock OMG (Online Management Guard)</b>
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

<b>Easy Driver Installer</b>
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!

<b>Dehumidifier</b>
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

<b>UEFI Tech Service</b>
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
