内存参数
| 內存插槽数量 |
2 |
| 最大内部存储 |
32 GB |
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 支持的内存类型 |
DDR3-SDRAM |
| 无缓冲内存 |
Y |
| 无错误检测和更正 |
Y |
内置输入/输出系统
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
| USB 2.0接口 |
2 |
| SATA II连接器数量 |
6 |
| 风扇电源接头 |
Y |
| ATX电源接头 |
Y |
背板输出端口
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| PS/2连接埠数量 |
2 |
| DVI-D接口数量 |
1 |
图像
| 支持的显示器数量 |
3 |
| 分立图形支持 |
Y |
| 最大图形显示内存 |
2048 MB |
| DirectX版本 |
11.1 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
扩展槽
| PCI 插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
| PCI Express x1（Gen 2.x）插槽 |
1 |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 主板晶片 |
AMD A55 FCH |

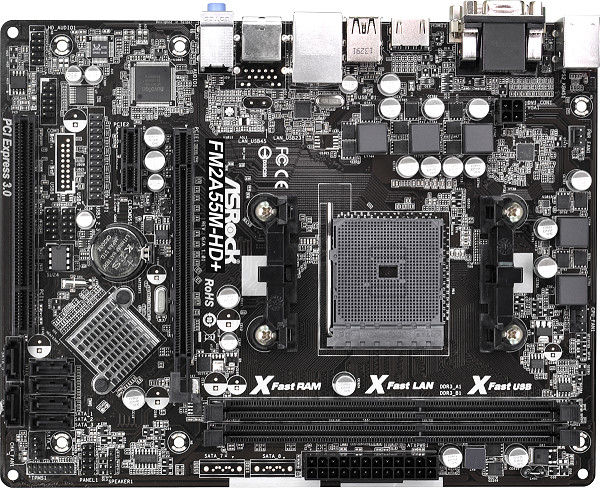

Socket FM2+, AMD A55 FCH, 2x DDR3 2133, D-Sub, DVI-D, HDMI, max 32GB, Gigabit Ethernet, Micro ATX
<b>FM2/FM2+ APU Support</b>
This motherboard is compatible with both AMD FM2 and FM2+ APUs. Please note that some new features may be only supported by FM2+ APUs.
<b>All Solid Capacitor Design</b>
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.
<b>Next-Gen PCI-E 3.0 Support</b>
This ASRock motherboard supports the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth of the next-gen PCI Express 3.0 VGA cards, thus providing ultimate graphics performance.
<b>Get PCI-E 3.0 Benefits</b>
- Higher bit rate - 8.0GT/s
- Higher bandwidth per lane - 1GB/s
- Higher efficiency - 98.5% encoding efficiency
- 100% backward compatible with previous PCI-E 2.0 / 1.0 standard
<b>X-Boost</b>
Brilliantly designed for smart overclocking, ASRock X-Boost Technology is able to unleash the hidden power of your CPUs. Simply press “X” when turning on the PC, X-Boost will automatically overclock the relative components to get up to 15.77% performance boost! With the smart X-Boost, overclocking CPU can become a near one-button process.
<b>A-Tuning</b>
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast 555, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!
<b>Triple Monitor</b>
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
