性能
| 主板元件 |
Mini ITX |
| 英特尔®快速存储技术 |
Y |
| 主板芯片组系列 |
Intel |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 英特尔®静音系统技术（QST） |
Y |
| 可信任平台模组(全面生产管理) |
Y |
| 英特尔®图形技术处理器 |
Y |
| 音频系统 |
Realtek ALC892 |
| 组件应用 |
PC |
| 冷却方式 |
Passive |
内存参数
| 可支持内存时钟速度 |
2133, 2400 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 支持的内存模块容量 |
4GB, 8GB, 16GB |
| 內存插槽数量 |
2 |
| 最大内部存储 |
32 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
128 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| ACPI的版本 |
6.0 |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-6xxx, i5-6xxx, i7-6xxx |
内置输入/输出系统
| USB 2.0接口 |
1 |
| 串列ATA连接器数量 |
6 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
6 |
| 周边（莫仕）电 源连接器（4针） |
1 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| M.2 (M) 插槽数量 |
1 |
| 前面板接头 |
Y |
| 12V 电源接头 |
Y |
| 音频连接器 |
Y |
图像
| DirectX版本 |
12.0 |
| 分立图形支持 |
Y |
| HDCP |
Y |
联网
| 网路唤醒功能 |
Y |
| 蓝牙版本 |
4.0 |
| 无线局域网连接 |
Y |
| 无线局域网类型 |
IEEE 802.11ac |
| 蓝牙 |
Y |
背板输出端口
| WiFi-AP天线端子 |
2 |
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
6 |
| HDMI端口数量 |
2 |
| USB 连接器形状 |
USB Type-A |
处理器的特殊功能
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
Y |
| 英特尔®清晰视频高清技术 |
Y |
扩展槽
| PCI Express X16（Gen 3.x）插槽 |
1 |
另外
| 主板晶片 |
Intel H270 |
| 双dvi（互应式数字视频） |
Y |
| Intel Optane technology ready |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

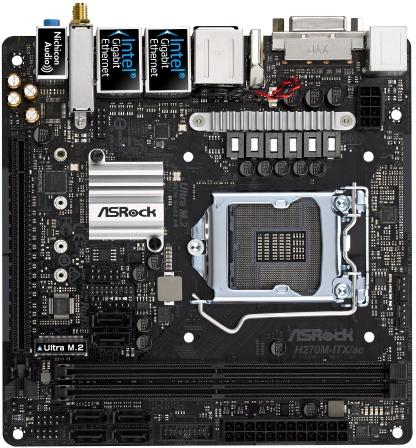

Intel H270, Socket 1151, Intel Core i7/i5/i3/Pentium/Celeron, 2x DDR4 DIMM up to 32GB, 2x Antenna Ports, 1x PS/2, 1x DVI-D, 2x HDMI, 2x USB 2.0, 6x USB 3.0, 2x RJ-45, HD Audio Jacks, 1x PCI Express 3.0 x16, 1x Vertical M.2, Gigabit LAN, 7.1 HD Audio (Realtek ALC892), 802.11ac WiFi Module, Mini-ITX
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready motherboards are definitely the one you’re looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
Ultra M.2 32 Gb/s
(PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redenes a new standard of high performance and responsiveness.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
Nichicon 12K Black Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
User friendly UEFI & EZ Mode
ASRock UEFI is the smoothest, slickest mouse-controlled BIOS has been improved to make it even more friendly. Advanced mode provides a more comprehensive environment that is designed for overclockers and power users who want maximum control over their PC’s hardware. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 1.5A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
