性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM, DDR3L-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
32 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| ACPI的版本 |
1.1 |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i7-4xxx, i3-4xxx, i5-4xxx |
内置输入/输出系统
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
2 |
| 周边（莫仕）电 源连接器（4针） |
1 |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI Express x1（Gen 2.x）插槽 |
1 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
另外
| 主板晶片 |
Intel H81 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

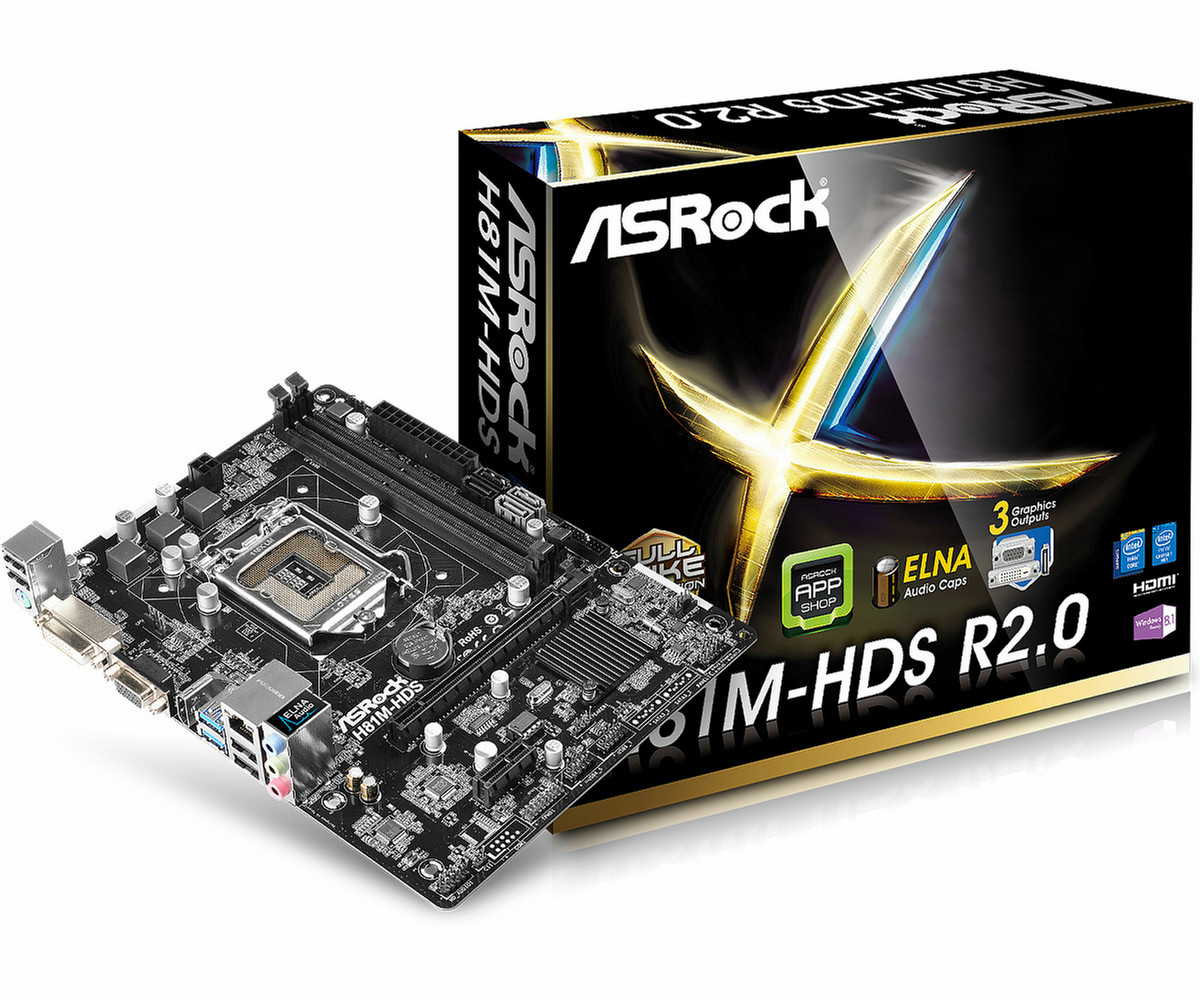

Socket 1150, Intel H81, Dual DDR3/DDR3L, 1600/1333/1066 non-ECC,, max 16 GB, 32Mb AMI UEFI Legal BIOS, HDMI, DVI, D-Sub, 10/100/1000 Mb/s, Micro ATX
- Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150)
- Supports Dual Channel DDR3/DD3L 1600
- 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1
- Graphics Output Options : DVI-D, D-Sub, HDMI
- Realtek Gigabit LAN
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec), ELNA Audio Caps
- 2 x SATA3, 2 x SATA2, 4 x USB 3.0 (2 Front, 2 Rear), 8 x USB 2.0 (4 Front, 4 Rear)
- Supports APP Shop, Full Spike Protection, FAN-Tastic Tuning, USB Key
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Surge Protection
Protects the motherboard from excessive surges from the power supply unit.
Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
ESD Protection
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
