处理器
| 处理器核心电压(AC) |
1.25-1.4 V |
| 处理器高速缓存 |
1 MB |
| 处理器光刻 |
45 nm |
| 散热设计功耗 (TDP) |
8 W |
| 无冲突处理器 |
N |
| 结温 |
100 °C |
| FSB奇偶校验 |
N |
| 总线频率 |
12 |
| 处理器运行模式 |
64-bit |
| 处理器前端汇流总线 |
533 MHz |
| 步进 |
C0 |
| 核心的处理器数量 |
2 |
| 处理器频率 |
1.6 GHz |
| 外壳温度 |
85.2 °C |
| 处理器支持 ECC 功能 |
N |
| 总线类型 |
FSB |
| 处理器高速缓存类型 |
L2 |
| Number of Processing Die Transistors |
94 M |
端口 & 界面
| DVI端口 |
N |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| eSATA端口数量 |
1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
软件
| 试用软件 |
CyberLink PowerDVD 8.0 DTS\nCyberLink PowerDirector 8.0\nCyberLink PowerBackup 2.5 |
处理器的特殊功能
| 英特尔®快速存储技术 |
N |
| 热监测技术 |
N |
| 英特尔®可信执行技术 |
N |
| 实体位址扩充（PAE） |
32 bit |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 处理器封装尺寸 |
22 mm |
| Processor ARK ID |
35641 |
| 处理器代码 |
SLG9Y |
| 英特尔®快速同步视频技术 |
N |
| 英特尔® 内线™ |
N |
| 物理地址扩展（PAE） |
Y |
| 英特尔®64 |
Y |
| 英特尔® 清晰视频技术 |
N |
| 英特尔® 双显示功能技术 |
N |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®超线程技术 |
Y |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® 增强暂停状态 |
N |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
N |
| 英特尔® FDI技术 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
N |
| 英特尔®基于需求开关 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 支持指令集 |
SSE3, SSE2, SSSE3 |
| 英特尔® 快速内存访问 |
N |
| 英特尔® Flex内存访问 |
N |
| 执行禁止位 |
Y |
| 闲置状态 |
N |
图像
| 板载图形适配器 |
Y |
| 独立显卡类型 |
NVIDIA ION |
其他功能
| 软盘驱动器的安装 |
N |
| 无线技术 |
802.11 b/g/n |
| 集成电视调谐器 |
N |
| 网路功能 |
Gigabit LAN |
| 电源类型 |
65W/19V |
性能
| 音频输出通道数量 |
7.1 channels |
| 音频系统 |
HD Audio w/ DTS |
内存参数
| 内存时钟速度 |
800 MHz |
| 内存布局 |
2 x 1 GB |
| 内存插槽数量 |
2x SO-DIMM |
| 最大内部存储 |
4 GB |
| 内置存储器 |
2 GB |
| 内存类型 |
DDR2-SDRAM |
存储介质
| 总存储容量 |
320 GB |
| 集成读卡器 |
N |
| 硬盘接口 |
Serial ATA |
另外
| InTru™3D技术 |
N |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网路(RJ-45)连接接口数量 |
1 |
| Processing die size |
52 mm² |

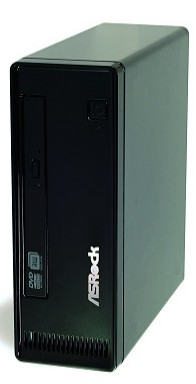

ION 330HT/W7HP Intel® Atom™ 330 1.6GHz (Dual core), 2GB (2 x 1GB) DDR2 800MHz, 320GB 2.5" HDD, DVD Super Multi, 802.11 b/g/n, Windows® 7 Home Premium
Home Theater PC designed for you
- MCE remote controller: The bundled ASRock exclusive remote controller and Microsoft® MCE (Media Center Edition) build up your entertainment database. You can use the MCE remote controller to power on your PC, and enjoy all the video and audio entertainments at the first time, just like the use of general audio/video devices!
- ASRock ION 330HT series mini nettops support various formats of HD videos downloaded from internet using software.
- ASRock ION 330HT series nettops are extraordinarily designed with High Glossy Surface Paint housing, which is similar to the paint of a Mercedes-Benz. It has a streamlined and compact appearance with the dazzling black and white color to display a calm and reserved mood. The small, sleek, fashionable designs provide the ultra-portable function for our nettops, and it’s ideal for setting in your living room!
- It comes with Intel® low-power Atom 330 dual-core processor, with first-class overclocking performance. It also has equipped with NVIDIA® ION Graphics processer and supports hardware-based decoding function which provides you the stable and excellent HD1080p high definition video/audio playback capability.
High speed WiFi 802.11n bandwidth sharing function
- ASRock ION 330HT series mini nettops have two invisible antennas (placed in a vertical/horizontal position) hidden inside the front panel, which provide larger signal coverage and faster connection speed. With the unrestricted-direction antennas design, the nettop can be used as the wireless network receiver, as well as the network bandwidth sharing device.
- Supports 802.11n wireless network standard which provide better signal coverage and faster speed than ordinary network sharing devices.
A perfect BT downloading machine - Environment-friendly and power-saving
- It has passed the Energy Star 5.0 certification. There’s no power waste when execute BT downloading task. You can enjoy the real green digital life!
- ASRock is the 1st to achieve EUP 2.0 standard which is a provision regulated by European Union to define the power consumption for the completed system (will execute in 2013)! By adopting the NuvoTon NCT6775F IC, the power consumption of ASRock ION 330HT series nettops in off mode is lower than 0.5W. This will help your system to save energy by 80%.
- Usually, the working temperature of a mini system is higher than 60℃. If the system works for a long time in a room without air-conditioner, it may crash or some components may be damaged. ASRock ION 330HT Series, with excellent efficiency in cooling fan and the perfect thermal design, the motherboard temperature is below 40℃. Moreover, with all high-quality solid capacitors, even if it operates for a long time, the system is not easy to crash!
- ASRock exclusive Good night LED function can turn off the unnecessary LEDs for you. When you download through BT at night or enjoy a movie with the lights off. You won’t be disturbed by the annoying LED lights any more.
The only NetTop HTPC which supports 2nd HDD and RAID 0, 1 function in industry
- When using RAID 0, you can enlarge the HDD capability and greatly improve the system performance.
- When using RAID 1, you can back up your favorite photos, videos and documents at any time. It helps you to protect the important files which are shared with the family You can enjoy your digital life without worrying about data loss or damage!
