内存参数
可支持内存时钟速度 |
1600 MHz |
内存插槽类型 |
SO-DIMM |
內存插槽数量 |
2 |
最大内部存储 |
16 GB |
端口 & 界面
DVI端口 |
N |
耳机输出端口 |
1 |
麦克风/音频输入插孔 |
Y |
DisplayPort 数量 |
1 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
HDMI端口数量 |
2 |
处理器
处理器加速频率 |
2.08 GHz |
处理器光刻 |
14 nm |
散热设计功耗 (TDP) |
6 W |
核心的处理器数量 |
4 |
内置处理器 |
Y |
处理器频率 |
1.6 GHz |
处理器的特殊功能
英特尔®快速存储技术 |
N |
执行禁止位 |
Y |
闲置状态 |
Y |
热监测技术 |
Y |
英特尔®可信执行技术 |
N |
英特尔®智能连接技术 |
N |
英特尔®中小企业通锐软件(SBA) |
N |
英特尔®稳定映像平台计划 (SIPP) |
N |
英特尔®快速同步视频技术 |
Y |
英特尔® 内线™ |
N |
英特尔®64 |
Y |
英特尔® 清晰视频技术 |
Y |
英特尔®智能响应技术 |
N |
可选用的嵌入式选项 |
Y |
英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
英特尔® 防盗技术 |
N |
英特尔®身份保护技术 |
Y |
英特尔®超线程技术 |
N |
英特尔®Turbo Boost技术 |
N |
英特尔®安全密钥 |
Y |
英特尔®虚拟化技术 |
VT-x |
英特尔®vPro™ 技术 |
N |
英特尔®VT-x的扩展页表(EPT) |
Y |
增强型英特尔®SpeedStep动态节能技术 |
Y |
英特尔® OS Guard 操作系统保护 |
N |
英特尔®无线显示(WiDi)技术 |
Y |
英特尔®清晰视频高清技术 |
Y |
能量控制
电源 |
36 W |
电源类型 |
External AC adapter |
另外
InTru™3D技术 |
N |
英特尔® 高保真音频技术 |
Y |
图形适配器 |
HD Graphics |
以太网连接器 |
Y |
英特尔®AES新指令 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |
Intel N3150 (Up to 2.08 GHz), Gigabit LAN, WLAN 802.11ac + BT 4.0, No OS

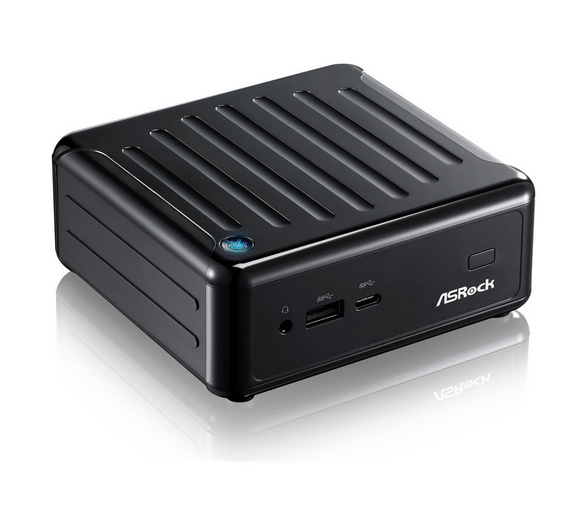

The design concept of ASRock Beebox originated from one of the most common insects – Bees. By squeezing a cutting edge Intel N3000 Series SoC powered motherboard and other peripherals into a compact chassis, Beebox is small, fast, hard working just like a bee, all but the distracting buzzing noise.
One Size Fits All
A home theater system for your living room, that's also quiet enough for your bedroom, and powerful enough for an office desktop, daily computing or industrial PC digital signage. You decide.
Triple Monitor
Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
- This DisplayPort only supports DP to D-Sub dongles. DP to HDMI dongles and DP to DVI dongles are not supported.
- To power up three monitors, please connect your monitors to 2*HDMI and 1*DP ports or 2*HDMI and 1*D-Sub ports via a DP to D-Sub dongle.
4K Support
The only system in the segment that supports dual channel memory for supporting 4K video playback.
H.265 Decoding
Supports HEVC (H.265) decoding to provide substantially improved video quality.
The World's First NUC with a USB Type-C Port
USB Type-C doubles the charge speed!
