性能
| 主板元件 |
Mini ITX |
| 可支持的Linux操作系统 |
Y |
| 英特尔®快速存储技术 |
N |
| 主板芯片组系列 |
Intel |
| PC健康监测 |
FAN, Temperature, Voltage |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1600 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
N |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM, DDR3L-SDRAM |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| ACPI的版本 |
5.0 |
背板输出端口
| 并口数量 |
1 |
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| 串列ATA连接器数量 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
2 |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱防盗接口 |
Y |
| 前面板音频接头 |
Y |
图像
| DirectX版本 |
11.1 |
| 板载图形适配器 |
Y |
| 图形适配器系列 |
Intel |
| HDCP |
Y |
| 支持的显示器数量 |
3 |
处理器的特殊功能
| 执行禁止位 |
Y |
| 闲置状态 |
Y |
| 热监测技术 |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔®中小企业通锐软件(SBA) |
N |
| 英特尔®稳定映像平台计划 (SIPP) |
N |
| 英特尔®64 |
Y |
| 英特尔®智能响应技术 |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®身份保护技术 |
Y |
| 英特尔®超线程技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔®安全密钥 |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® OS Guard 操作系统保护 |
N |
扩展槽
| PCI Express x1（Gen 2.x）插槽 |
1 |
处理器
| 处理器热功耗（最大） |
6 W |
| 核心的处理器数量 |
4 |
| 处理器频率 |
1.6 GHz |
另外
| 英特尔® 高保真音频技术 |
Y |
| 图形适配器 |
HD Graphics |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

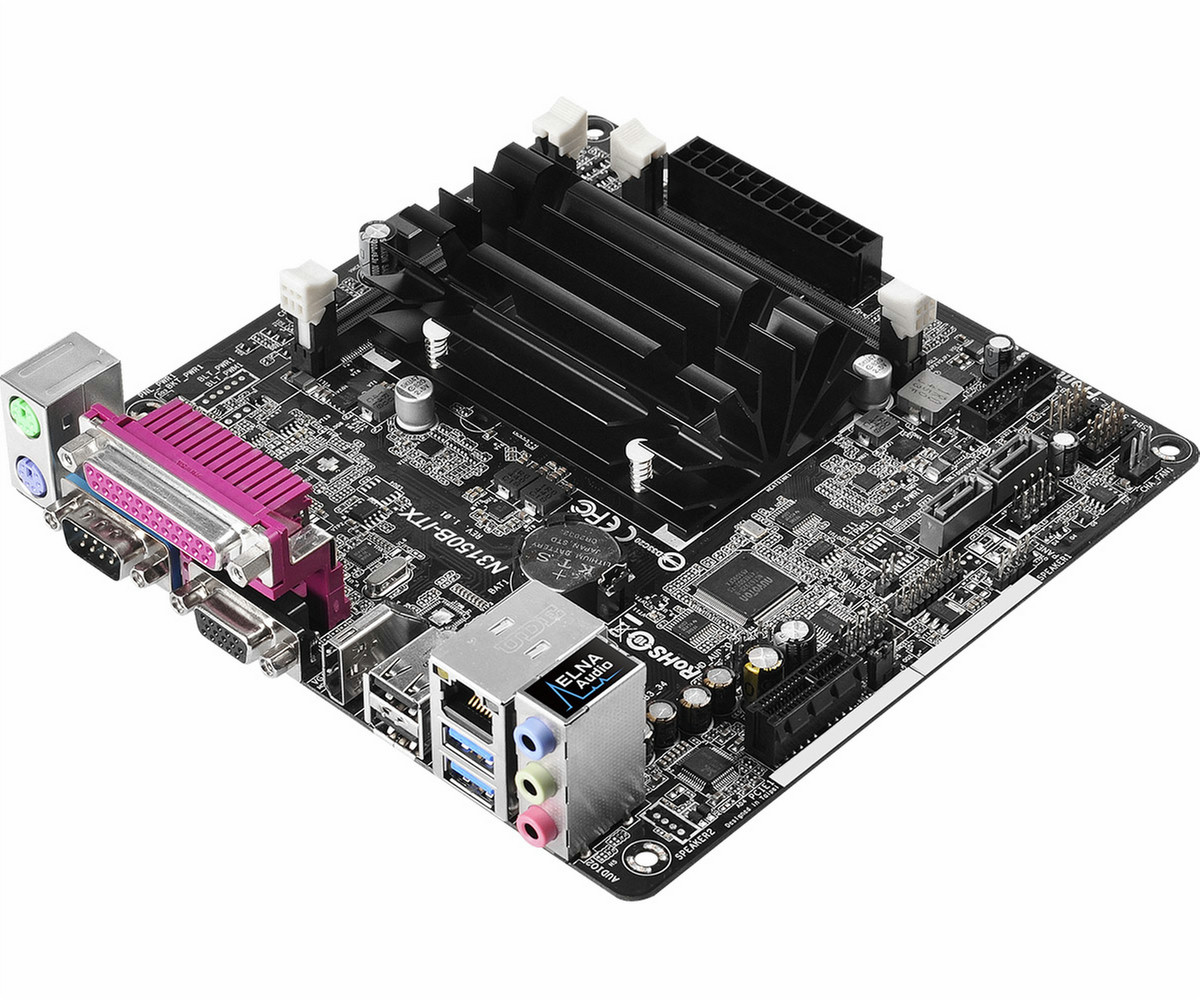

Intel Celeron N3150 (2M Cache, up to 2.08 GHz), Intel HD Graphics, SATA 3, 7.1ch, DDR3/DDR3L, Gigabit LAN, Mini-ITX
Intel® Quad-Core Processor N3150 (Up to 2.08 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.
14nm CPU Core Inside SoC Motherboards
Built around an Intel® N3000 Series processor, this motherboard packs plenty of expandability, superb integrated performance, and abundant graphics outputs. With its excellent hardware configuration and software support, it is your ideal solution to do business work, play games, or enjoy video and music entertainment. ASRock presents you the best motherboard to build your own mini PC!
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
Supports Standard & Low Voltage SO-DIMMs
Capable of supporting both standard and low-voltage SO-DIMMs.
16GB Memory Support
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.
HEVC (H.265) Decoding
Supports HEVC (H.265) decoding to provide substantially improved video quality.
D-Sub, HDMI, Parallel, COM
Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Orbweb ME
Your Personal Cloud, Easy and Always Connects
ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function is also available. Now, download Orbweb Me Host, enter ASRock Cloud promotion code "ASR2014B", ASRock's users are allowed to enjoy all services above.
Personal Cloud for Everyone
Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.
Media Library and Streaming
Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.
Access File Explorer From Multiple Devices
Orbweb ME allows you to access your own personal File Explorer from multiple devices, bringing your tablets, laptops and PC together. Forgot an important file in your computer at home which you need for the next meeting? Another hard day hiding in the office bathroom, missing your massive collection of funny videos and music clips? You can get it all by connecting your tablets or laptops to access File Explorer and immerse into the paradise in few seconds.
Remote Desktop Anywhere
Laying in the bedroom or sitting in the office, tablet in your hands just becomes smarter. Pick up any work sheet left in office or start any application from you home PC. Orbweb ME's remote desktop not only mobilized your PC but also empower your tablet. No matter the device, No matter the location, Orbweb ME always keeps your PC by you.
Wake On WAN
The latest technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.
High Expandability
Four USB 3.0 5Gb/s ports (Two in the front and two on the rear) for supporting all of your peripherals with fast data transfer speed.
Passive Heatsink Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
