背板输出端口
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| PS/2连接埠数量 |
2 |
| 串口数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| PS电源接口 （8针） |
Y |
| SATA II连接器数量 |
4 |
| 软盘驱动器接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| ATX电源接头 |
Y |
| 并行ATA连接器 |
1 |
内存参数
| 最大内部存储 |
16 GB |
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
| 无缓冲内存 |
Y |
| 无错误检测和更正 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 內存插槽数量 |
2 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI 插槽 |
2 |
| PCI Express × 1插槽 |
1 |
图像
| 图形适配器系列 |
NVIDIA |
| 板载图形适配器 |
Y |
| DirectX版本 |
9.0 |
另外
| 以太网连接器 |
Y |
| 图形适配器 |
GeForce 7025 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 主板晶片 |
NVIDIA nForce 630a |

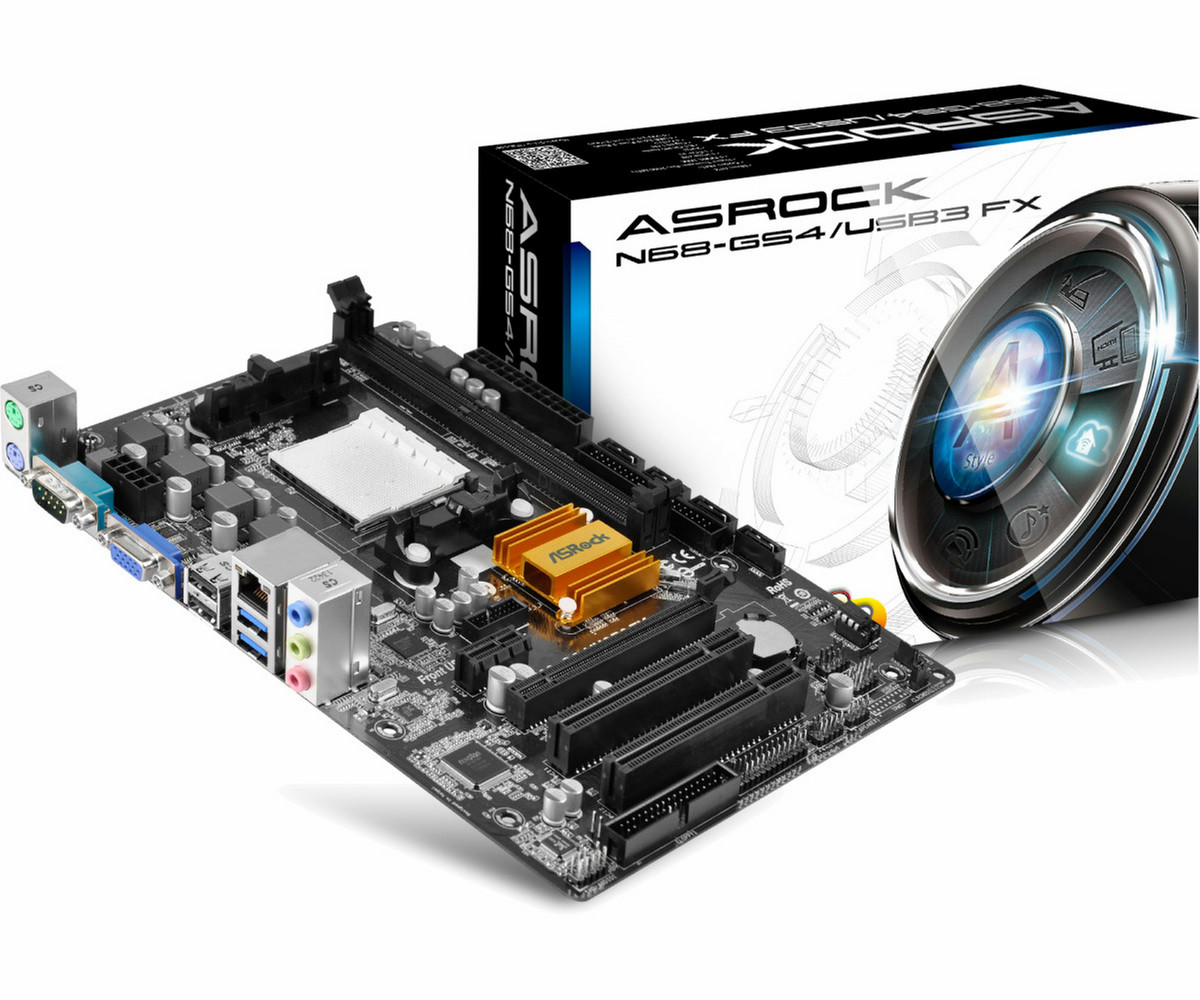

AM3+, 8-Core CPU, DDR3 1866, NVIDIA GeForce 7025, 1 x D-Sub, 1 x ATA133 IDE, 5.1 CH
<b>AM3+ 8-Core Processor Support</b>
This board is designed to build up the most powerful system and delivers the most demanding technology for users nowadays. Just enjoy next generation computing with ASRock 8-Core CPU Ready motherboard.
<b>C.C.R. (Combo Cooler Retention Module)</b>
The unique combo cooler retention module greatly improves heat dissipation and is backward compatible with AMD previous AM3/AM2+ coolers.
<b>All Solid Capacitor Design</b>
All the capacitors on this board are built with 100% all solid capacitors. With these solid caps, ASRock’s motherboards are allowed to perform more stably and ensure longer lifetime.
<b>4 USB 3.0 (2 Front, 2 Back)</b>
Rich storage options! This motherboard offers 4 USB 3.0 (2 from onboard header, 2 from rear I/O) to facilitate computing environment.
<b>Instant Boot</b>
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
<b>ASRock App Charger</b>
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
OC DNA, it’s an exclusive utility developed by ASRock’s outstanding RD team, provides a convenient way for user to share the OC settings with others. It helps you to save your overclocking settings under the operating system and simplifies the complicated recording process of overclocking settings. With OC DNA, you can save your OC settings as a profile and send the profile to your friends! Your friends then can load the OC profile to their own system to get the same OC settings as yours!
