性能
主板元件 |
ATX |
主板芯片组系列 |
Intel |
音频系统 |
Realtek ALC1150 |
组件应用 |
PC |
内存参数
可支持内存时钟速度 |
1066, 1333, 1600, 1866, 2133 MHz |
无错误检测和更正 |
Y |
错误更正代码 |
N |
无缓冲内存 |
Y |
支持的内存类型 |
DDR4-SDRAM |
内存通道支持 |
Quad |
内存插槽类型 |
DIMM |
內存插槽数量 |
4 |
最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
BIOS内存大小 |
256 MB |
基本输入输出系统类型 |
UEFI AMI |
ACPI的版本 |
1.1 |
内置输入/输出系统
USB 2.0接口 |
2 |
ATX电源接头 |
Y |
风扇电源接头 |
Y |
TPM(可信任安全平台模组)接口 |
Y |
USB 3.0(第 1代3.1)连接器 |
1 |
SATA III连接器数量 |
10 |
PS电源接口 (8针) |
Y |
CPU风扇接口 |
Y |
COM连接器数量 |
1 |
机箱风扇接头数量 |
3 |
前面板音频接头 |
Y |
内容包装
试用软件 |
AntiVirus, Start8 |
包括驱动器 |
Y |
快速安装向导 |
Y |
背板输出端口
迅雷 ™ (Thunderbolt™) 端口数量 |
1 |
PS/2连接埠数量 |
2 |
S/PDIF输出接口 |
Y |
麦克风/音频输入插孔 |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
4 |
扩展槽
PCI Express x1(Gen 2.x)插槽 |
1 |
PCI Express X16(Gen 2.x)插槽 |
1 |
PCI Express X16(Gen 3.x)插槽 |
2 |
另外
主板晶片 |
Intel X99 |
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

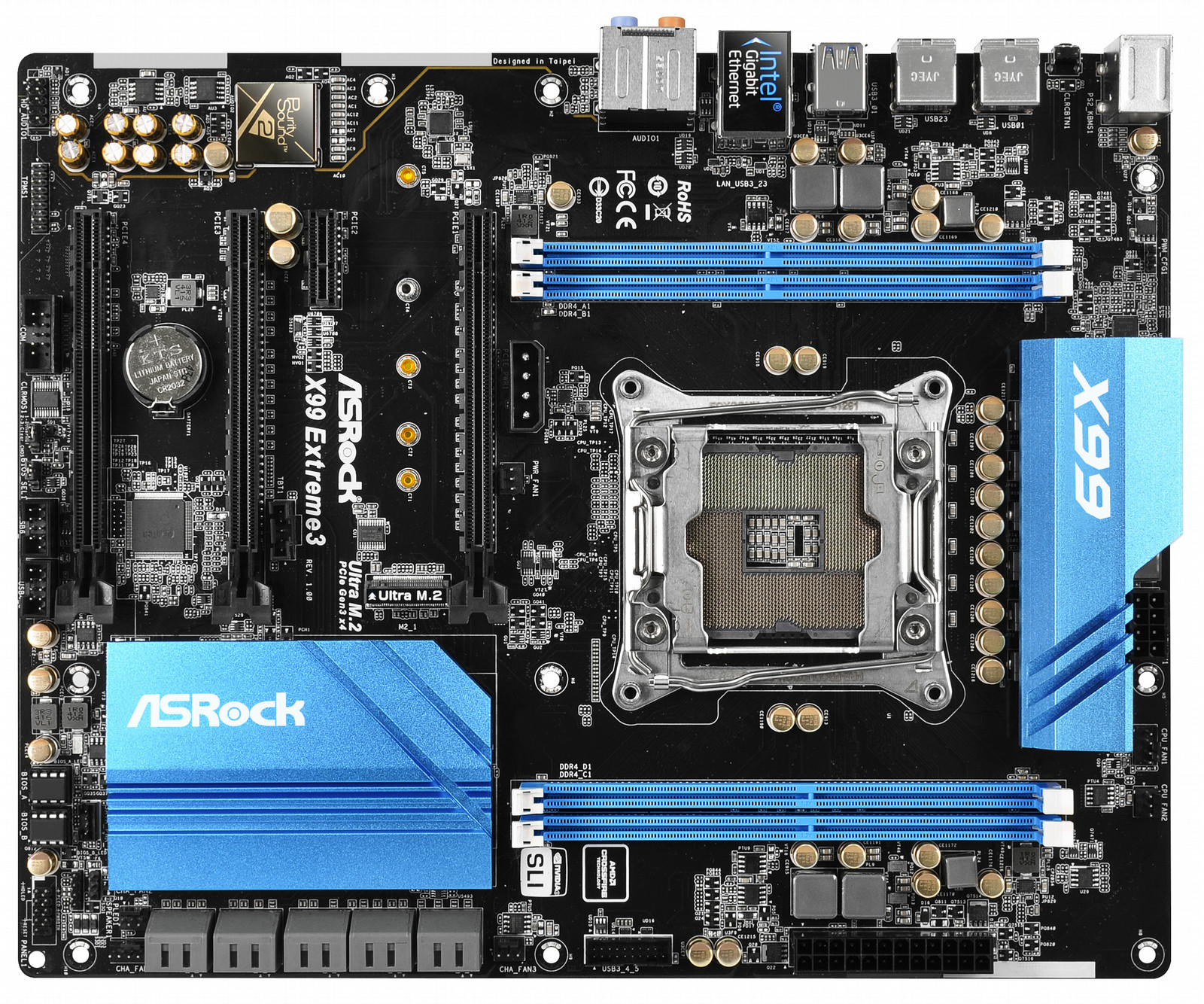

Intel X99, LGA 2011, 4 x DDR4 DIMM, non-ECC, un-buffered, 2 x PCI Express 3.0 x16, PCI Express 2.0 x16, PCI Express 2.0 x1, PS/2 x 2, 4 x USB 2.0, 4 x USB 3.0, RJ-45, ATX
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.
Ultra Dual-N MOSFET
Combining with two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.
NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.
* Human Body Mode.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 mΩ, delivering higher efficiency and lower temperature.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Sapphire Black PCB
ASRock does not overlook any details, even those tiny ones. With pure black PCB appearance, the new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Ultra M.2 (PCIe Gen3 x4)
The World’s Fastest M.2 Socket - PCIe Gen3 x4
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.
Supports DDR4 ECC / RDIMM Memory Modules
This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
Digi Power
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
15μ Gold Contact in DIMM & VGA PCIe Slot
Unlike other motherboards come with only 3-4µ gold contact, this motherboard is coated with 15µ gold contact in the DRAM slots and PCIe x16 slot, thus providing better anti-oxidation protection than usual.
Purity Sound™ 2
Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.
This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz bass low freq area, Purity Sound™ 2 still maintains its frequency response (0.4dB) and provides better bass with the TI® NE5532 amplifier, improving the bass quality by 20% (1.6dB)!
