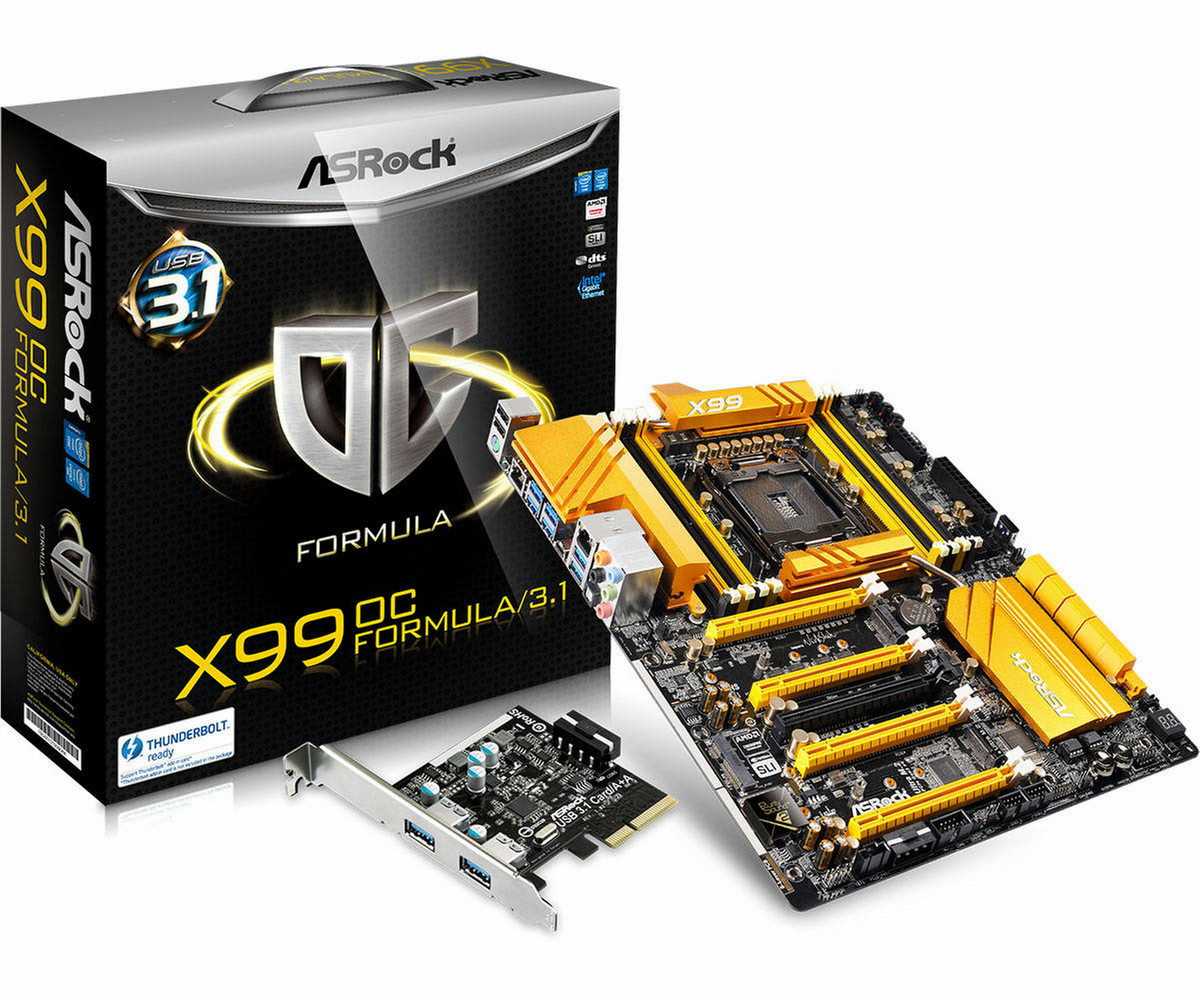

Asrock X99 OC Formula/3.1 Intel X99 LGA 2011-v3 Extended ATX

Chipset Intel X99, Socket LGA 2011-3, 8 DDR4 DIMM, Quad channel, 128GB, UEFI AMI BIOS, EATX - ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- OC Formula Kit
- OC Formula Power Kit - 12 Phase CPU Power design + Digi Power, Ultra Dual-N MOSFET
- OC Formula Connector Kit - Hi-Density Power Connector, 15μ Gold Contact, ASRock X series OC Socket
- OC Formula Cooling Kit - 8 Layer PCB, 4 x 2oz copper
- OC Formula Monitor Kit - Multi Thermal Sensor
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket(OC Socket)
- Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3400+(OC), with maximum capacity up to 128GB
- Supports DDR4 UDIMM ECC*, RDIMM Memory (*ECC is supported with Intel® Xeon® processors.)
- 5 PCIe 3.0 x16, 1 Half mini-PCIe
- Supports AMD 4-Way CrossFireX™ and NVIDIA® 4-Way SLI™
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
- Intel® Gigabit LAN + Qualcomm® Atheros® Gigabit LAN
- 10 SATA3, 1 SATA Express, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen2 x2 & SATA3)
- 1 USB 3.1 Type-C 10Gb/s, 2 USB 3.1 Type-A 10Gb/s (Supported by the bundled ASRock USB 3.1 Card/A+A), 11 USB 3.0 (4 Front, 6 Rear, 1 Vertical Type A), 6 USB 2.0 (4 Front, 2 Rear)
- V-Probe, Rapid OC, PCIe ON/OFF, 1 COM Port Header, 1 Thunderbolt™ AIC Connector
- Supports HDD Saver Technology, Full Spike Protection, APP Shop

An onboard Type C USB 3.1 connector for plugging mobile devices, plus a PCIe x4 add on card that provides 2 Type A USB 3.1 connectors for delivering up to 10Gbps data transfer rates.

This flagship motherboard boasts a whopping 12 Power Phase Design with 24 Dual-N MOSFETs, which can reach up to an unearthly 1300W support, so that users may overclock and squeeze out every drop of performance effortlessly.

This motherboard uses a digital PWM (Pulse-Width Modulation) design, providing CPU Vcore voltage more efficiently and smoothly.

Hi-Density Power Connectors can reduce 23% power loss and decrease the connector's temperature up to 22℃.

This motherboard provides 15µ gold within the CPU socket, DRAM slots and PCIe x16 slots, thus delivering better anti-oxidation protection than usual.

The very useful heat pipe design can maximize the system’s convection to expel hot air out.

The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, delivering lower temperature and higher energy efficiency for overclocking.

Users may precisely keep track and control the temperature of each part of their motherboard when overclocking.

<b>XXL Aluminum Alloy Heatsink Design</b>
The extra large aluminum alloy heatsinks dramatically take away heat. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.

<b>Ultra Dual-N MOSFET</b>
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.

<b>Premium 60A Power Choke</b>
Compared to traditional chokes, ASRock’s new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.

<b>Nichicon 12K Platinum Caps</b>
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
* Tested under industry standard 105 degree Celsius ambient temperature.

<b>Premium Memory Alloy Choke</b>
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.

<b>Sapphire Black PCB</b>
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

<b>Supports DDR4 ECC / RDIMM Memory Modules</b>
This motherboard is capable of supporting DDR4 ECC x8 (8 bit) RDIMM/x8 (8 bit) and UDIMM memory modules which deliver server-grade performance and durability for high-powered computing systems.
* ECC is supported with Intel® Xeon® processors.

<b>128GB Memory Support</b>
Designed to meet the maximum computing power system, this motherboard adopts Quad-Channel 8 DDR4 DIMM slots. Each slot supports 16GB memory module, thus delivering a maximum capacity up to 128GB.
* 128GB memory is supported with x8 (8 bit) memory modules.

<b>X Series OC Socket</b>
ASRock’s newly designed LGA2011 CPU socket that adds more pins to boost the performance of the CPU and memory, plus it also unlocks several hidden voltage tweaking options for advanced overclocking.

<b>Ultra M.2 (PCIe Gen3 x4)</b>
<b>The World’s Fastest M.2 Socket - PCIe Gen3 x4</b>
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.

<b>M.2 Socket (PCIe Gen2 x2 & SATA3)</b>
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) solid state drives or other devices. ASRock supports M.2 SATA3 6Gb/s modules and M.2 PCI Express modules up to Gen2 x2 10Gb/s, which is 2X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.

<b>Digi Power</b>
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

<b>Supports NVIDIA® 4-Way SLI™, AMD 4-Way CrossFireX™</b>
This motherboard comes with more than enough PCIe slots that supports multi-GPU 4-Way SLI and 4-Way CrossFireX at x8/x8/x8/x8 mode.

<b>SATA Express Connector</b>
The SATA Express* interface provides PCIe Gen2 x2 (10Gb/s) data transfer speed. This motherboard offers the latest SATA Express connector to enthusiasts to enjoy the ultimate performance.

<b>Purity Sound™ 2</b>
Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.

<b>Intel® LAN</b>
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

<b>ASRock APP Shop</b>
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

<b>HDD Saver Technology</b>
There's a dedicated 4-pin HDD Saver Connector placed near the SATA ports. By connecting it to the HDDs, you can shut down or turn on the HDDs via software when needed. HDD Saver Technology secures more privacy, saves more energy, and extends HDD life.

<b>Rapid OC</b>
The onboard Rapid OC buttons allow overclocking enthusiasts to manually raise or lower the system's CPU ratio, BCLK frequency or CPU Vcore voltage. Fast and simple, just use the buttons to find your CPU’s best margin.

<b>PCIe ON/OFF</b>
For those who constantly need to remove or reinstall their PCIe cards, but fear of damaging the motherboard and its precious components, use the PCIe ON/OFF switches on the motherboard to enable or disable the PCIe slots with a flick of your finger.

<b>Nick Shih’s OC Profile</b>
No matter whether you are still a newbie with absolutely zero experience or a veteran who is already pretty skillful in overclocking, the legendary overclocker Nick Shih has added a few presets for different levels of overclocking called Nick Shih’s OC Profile. Now is your chance to learn a few tricks from the champion.

<b>LN2 Mode</b>
Rules are made for breaking! Use the onboard switch to activate LN2 Mode to disable the CPU’s thermal protection. Explore beyond the limits and keep your fingers crossed.

<b>Slow Mode</b>
Patience is a virtue, and it may also prove itself useful while overclocking. Use the onboard switch to toggle Slow Mode for forcing your CPU to run at its lowest frequency.

<b>USB Key</b>
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

<b>Restart to UEFI</b>
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

<b>ASRock OMG (Online Management Guard)</b>
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

<b>UEFI Tech Service</b>
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
