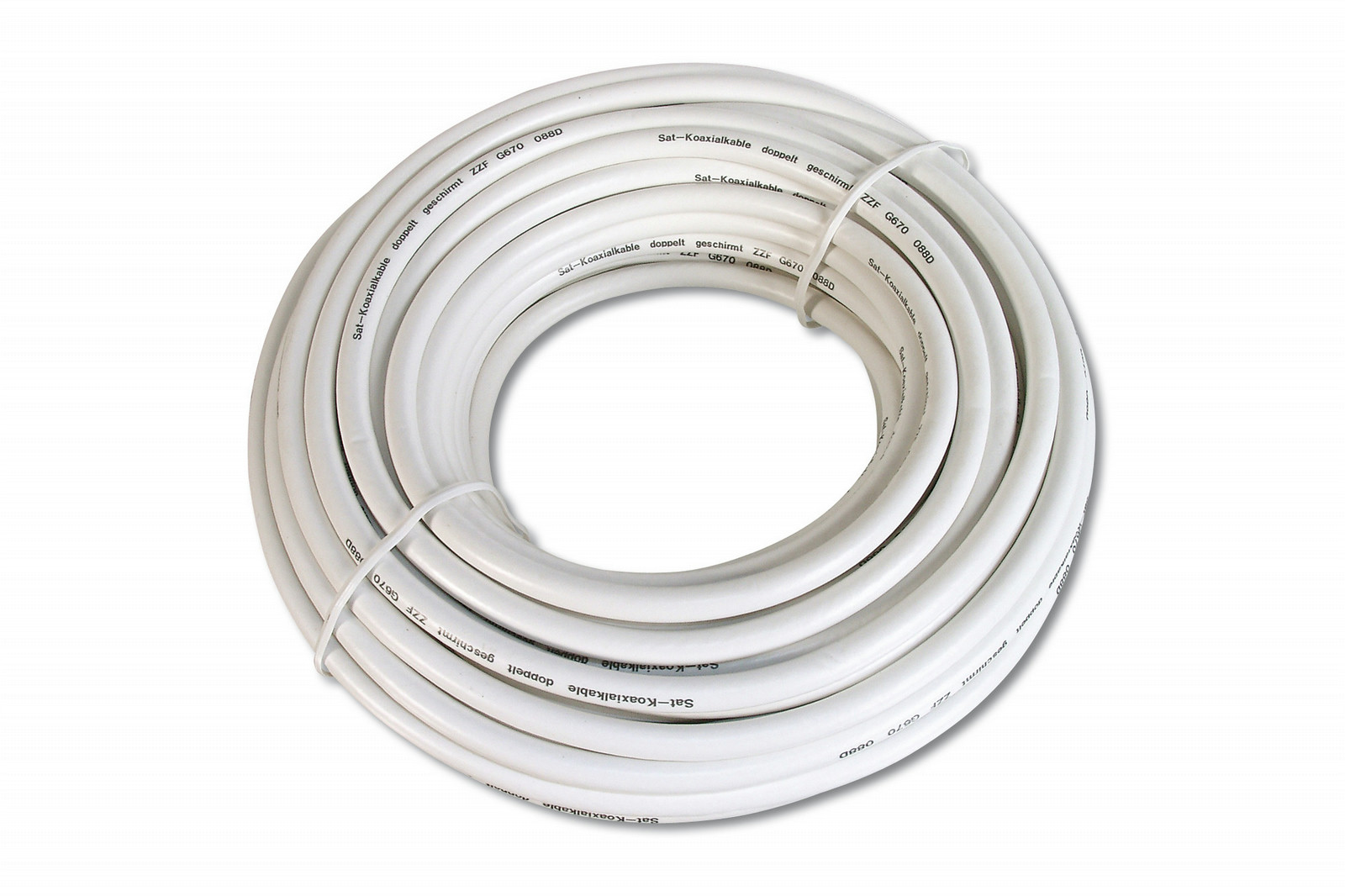

ASSMANN Electronic AK-007004 100m White coaxial cable

ASSMANN Electronic AK-007004 100m White coaxial cable

MPN: AK-007004
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部
SAT coaxial raw cable, 75 Ohm Sat Raw Cable, 90DB, OD: 5.5MM, 100m, CCS, 1.1mm, 2x shielded, Braid 96x0.12, ring packed, white

Attenuation at 20°C in dB/100m (in avarage): 100MHz - 5.9dB 200MHz - 7.9dB 300MHz - 10.0dB 500MHz - 13.6dB 800MHz - 17.4dB 1000MHz - 19.8dB 1350MHz - 23.9dB 1750MHz - 26.9dB 2050MHz - 30.8dB

- Jacket material: PVC
- Jacket diameter: 6.8mm
- Inner conductor: CU 1.1mm
- Insulation: Cell PE 5.0mm
- 1. Shielding: AL foil double-lined
- 2. Shielding: AL braid 96x 0.12mm
- Impedance: 75Ω
- Screening factor: > 90dB
- Ring packed
- Color: white
