端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
10 |
| Combo SFP 端口数量 |
2 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
Fast Ethernet (10/100) |
以太网电源(PoE)
| 通过以太网(PoE)供电端口数量 |
8 |
| 支持以太网(PoE) |
Y |
数据传输
| MAC 地址表 |
8000 entries |
| 交换容量 |
5.6 Gbit/s |
Industrial Fast Ethernet PoE Switch, 8-port RJ45, 2-port Gigabit Combo (SFP & RJ-45) IP30, DIN RAIL, Redudant power
8 port Plug&Play Industrial PoE Switch with Gigabit Uplink

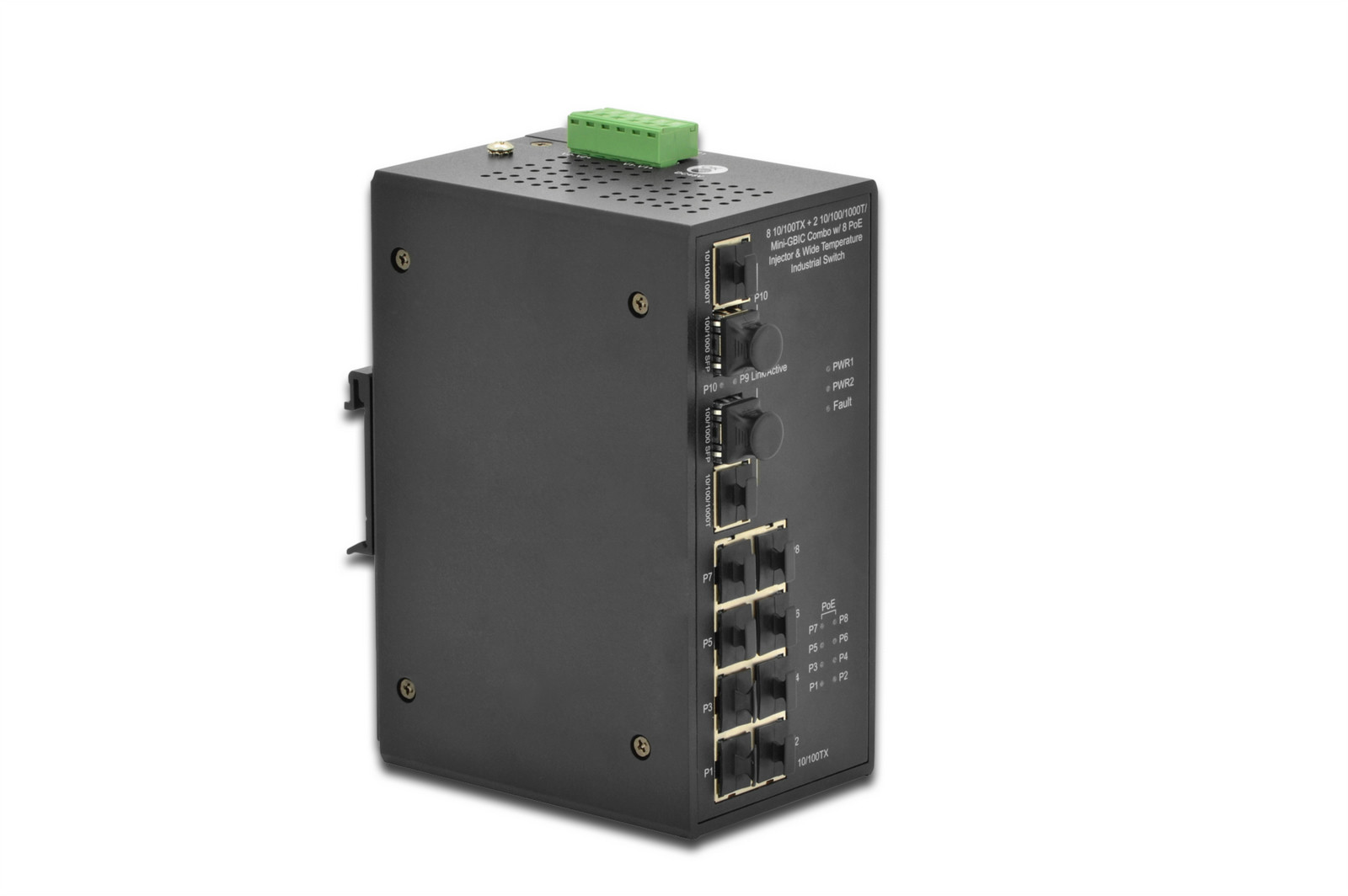

The DIGITUS® industrial switches are designed for harsh environments where they are exposed to moisture, temperature changes and vibrations. With a temperature range from -40 ° C to 75 ° C, the industrial switches are also certified according to NEMA (National Manufacturers Association) TS1 & TS2 and therefore can be used in the harshest conditions. With the redundant power supply constant availability in highly sensitive areas such as transportation, manufacturing, transport and security is guaranteed. The simple plug and play system can be a rapid involvement of industial switches in the needed environment. The DIGITUS® DN-650102 is an unmanaged Plug & Play industrial Ethernet switch in a robust IP30 protected aluminum housing. With 8 x 10/100Base-TX Ethernet PoE ports and 2 x Gigabit Combo (SFP) ports the industrial switch is a flexible, cost-effective solution for industrial environments. All switches are designed for use in harsh environments and could be used in many applications due to the approvals.
