端口 & 界面
DC-IN插口 |
Y |
接口数量 |
5 |
USB 3.0(第 1代3.1)Type-A 端口数量 |
5 |

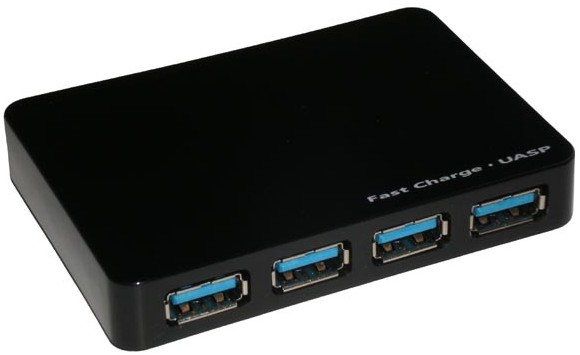

1x USB 3.0 (Micro-B) + 4x USB 3.0 A + 1x DC @ Slim Design 13mm Height, Supports Battery Charging
- Slim Design with only 13mm Height & Bus Power features well-suit for mobile application.
- 1x USB 3.0 (Micro-B) Super Speed Upstream Port.
- 4x USB 3.0 (Standard A) Super Speed Downstream Port.
- 1x DC Jack.
- Supports Bus Power & Self Power modes.
- 1x Blue Power LED, 4x Red Port Connect LED.
- USB 3.0 specification rev. 1.0 compliant.
- USB 2.0 specification rev. 2.0 compliant.
- Supports Super Speed 5Gb/s, High-Speed 480Mb/s, Full-Speed 12Mb/s, & Low-Speed 1.5Mb/s.
- Max. 5Gb/s USB transfer rate.
- Supports SuperSpeed & USB 2.0 Link Power Management.
- Supports Multiple Transaction Translator.
- USB Attached SCSI Protocol(UASP) Revision 1.0 compliant.
- All USB 3.0 Ports support Battery Charge Rev1.2 specification(Charging Downstream Port, CDP).
- All USB 3.0 Ports support Dedicated Legacy Battery Charge Port(DCP) for Apple series products.
- All USB 3.0 Ports support Automatic Battery Charge function detection.
- All USB 3.0 Ports support Batterty Charge while the system enters active or suspend state.
- All USB 3.0 Ports support USB Fast Charge.
- Individual MOSFET Power Switch Protection & Over-current sensing for each port.
- 5V/4A power adapter provides sufficient current to 4 downstream ports (0.9A x 4 = 3.6A).
- Plug & Play.
- No drivers need for Windows, Mac OS 10.X & Linux.
