内置输入/输出系统
| SATA II连接器数量 |
4 |
| 前面板音频接头 |
Y |
| EATX电源接头数量 |
1 |
| 机箱防盗接口 |
Y |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
| 并行接口 |
Y |
| 机箱风扇接头数量 |
1 |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
1 |
性能
| 主板芯片组系列 |
Intel |
| 音频系统 |
VIA VT1705S |
| 组件应用 |
PC |
图像
| 图形适配器系列 |
Intel |
| 板载图形适配器 |
Y |
| 最大图形显示内存 |
256 MB |
内存参数
| 支持的内存类型 |
DDR3-SDRAM |
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
4 GB |
背板输出端口
| PS/2连接埠数量 |
1 |
| COM接口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
另外
| 主板晶片 |
Intel NM10 Express |
| 图形适配器 |
GMA 3150 |
| 以太网路(RJ-45)连接接口数量 |
1 |

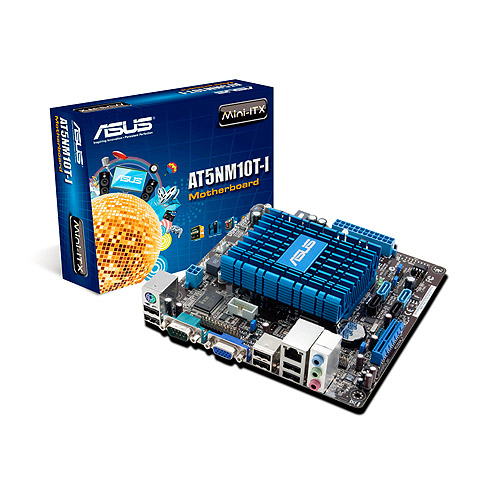

AT5NM10T-I - Intel Atom D525, Intel NM10, 2 x SO-DIMM Max. 4GB DDR3 800 Hz Non-ECC, Intel GMA 3150 GPU, 1 x PCIe x4, 4 x SATA 3Gb/s, Gigabit LAN, VIA VT1705S 6-Ch., Mini ITX
<b>Intel® ATOM™ Processor</b>
The Intel® Atom™ processor is Intel's smallest processor, built with the world's smallest transistors and manufactured on Intel's industry-leading 45nm Hi-k Metal Gate technology. The Intel Atom processor was purpose-built for simple, affordable, netbooks and nettops.
<b>High Definition Audio</b>
Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
<b>CrashFree BIOS 3</b>
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file.
<b>EZ Flash2</b>
ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.
<b>SATA 3Gb/s</b>
Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.
<b>MyLogo2</b>
This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
<b>Gigabit Lan</b>
The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
<b>GreenASUS</b>
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
