端口 & 界面
| 串口数量 |
1 |
| PS/2连接埠数量 |
2 |
| IEEE 1394/Firewire(火线)端口数量 |
2 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| VGA（D-SUB）端口数量 |
1 |
其他功能
| 串列ATA连接器数量 |
3 |
| 并行ATA连接器 |
1 |
| 处理器安装数量 |
1 |
| 驱动器托架 |
2 x 3.5", 1 x 5.25" |
| 扩展插槽 |
1 x PCI\n1 x PCI-e x 16 |
内存参数
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
4 GB |
另外
| 主板晶片 |
Intel 945GC Express |
| 图形适配器 |
GMA 950 |
| 以太网路(RJ-45)连接接口数量 |
1 |

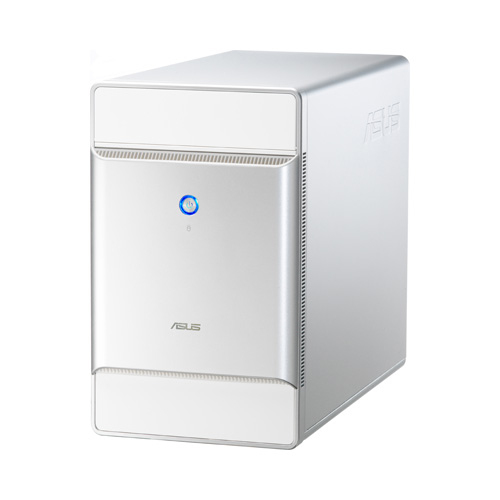

T3-P5945GCX - Socket 775 1333/1066/800/533MHz, Intel 945GC/Intel ICH7, 2 x DIMM Dual DDR2 667/533 max. 4GB, 1 x PCI, 1 x PCI-e x 16, GMA 950, 1x ATA 100, 3 x SATA II, Fast Ethernet, 300W (PFC)
Powerful media Performance
T3-P5945GCX supports FBS 1333MHz of Intel Conroe CPU, and builds 8 Channel Codec inside, not only increase your working efficiency, but also meet your nitpicking demand for sound at the same time.
Considerate Sliding Door Design
Unique sliding panel, designed by ASUS professional ID teams, hides the front I/O gracefully and leads PC in the design direction of new generation with fashion and succinct style.
Exciting Gaming Experience
The compact size of T3-P5945GCX can support powerful VGA card to enjoy extreme gaming and joyful multimedia.
Swivel Chassis Design and Clean Cable Management
Because of the flip-over chassis design & nice cable management, it´s very easy to install and repair the PC.
Smart PCB Module Design
Integrated several I/O parts into one PCB card and the PCB card can be slotted into the main board without any connection by cables. It´s easy for repairing and testing
Powerful Performance and Speedy Platform
Support PCI-e x16 graphic card, the supreme transfer rate is 8GB/s, 3.5 times faster than traditional AGP8X graphic interface
Support Dual DDRII 667/533, up to 4G
Support SATAII interface, the transfer rate is 50% higher than traditional PATA interface
ASUS Q-Fan Technology
Q-Fan automatically adjusts CPU fan speed based on system loading and temperature to ensure a quiet and distraction-free working environment.
Recover Pro - Your Files are in Good Hands
No need to worry about losing your data due to virus attacks anymore! T3-P5945GCX series is equipped with the Recover Pro software that assures dynamic and continuous data protection. It automatically creates multiple restore points for easy file recovery even without booting OS.
