处理器
| 处理器频率 |
1360 MHz |
| 图形处理器系列 |
AMD |
| CUDA |
N |
| 最大数字分辨率 |
7680 x 4320 pixels |
| 流处理器 |
2304 |
| 处理器提高时钟速度 |
1380 MHz |
内存参数
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
256 bit |
| 独立显卡适配器內存 |
8 GB |
性能
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| 集成电视调谐器 |
N |
| HDCP |
Y |
端口 & 界面
| DVI-D接口数量 |
1 |
| 接口类型 |
PCI Express 3.0 |
| DisplayPort 数量 |
2 |
| HDMI端口数量 |
2 |
设计
| 插槽数量 |
2 |
| 风扇数量 |
2 fan(s) |
| 冷却方式 |
Active |

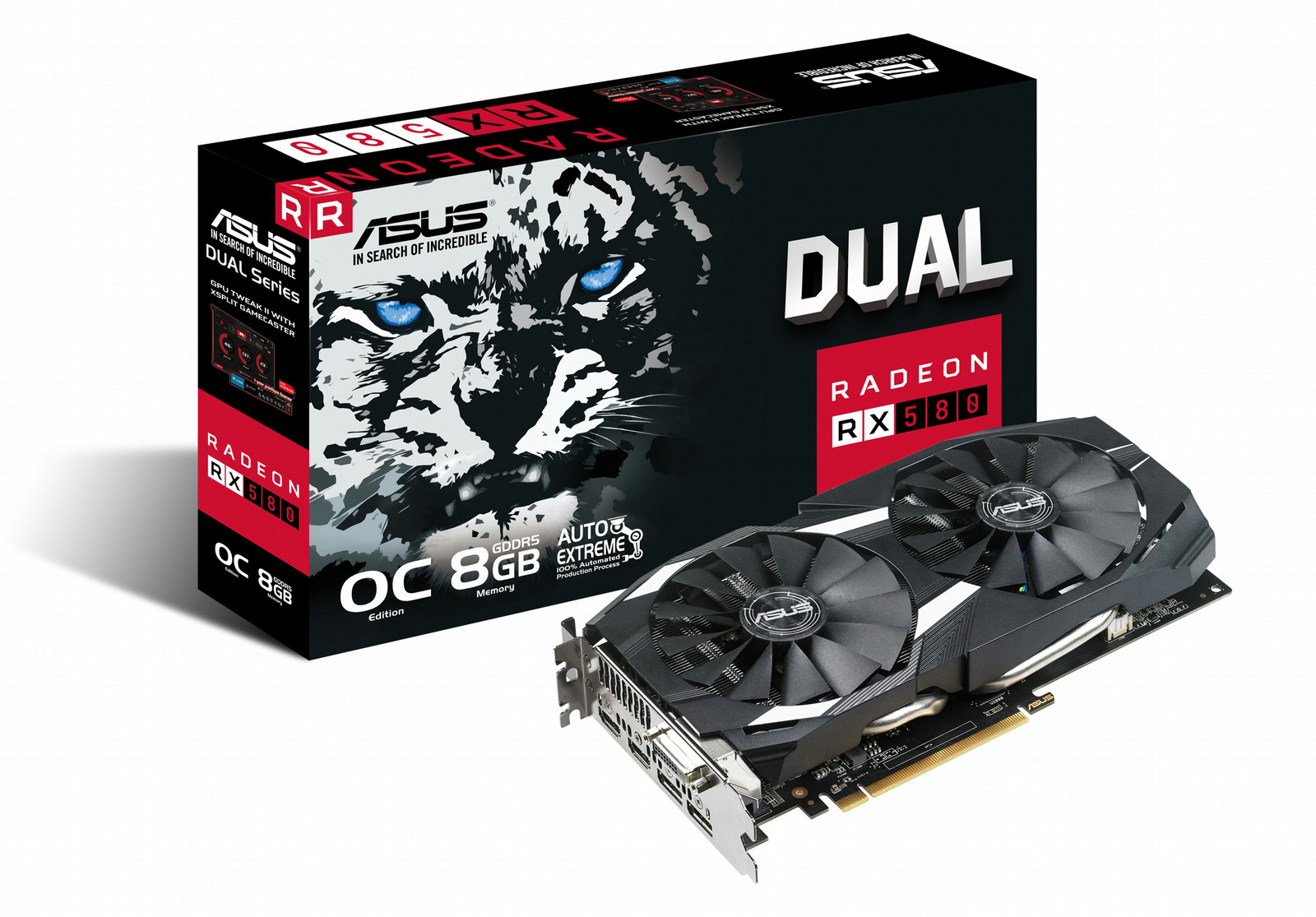

AMD Radeon RX 580 8GB GDDR5, OpenGL 4.5, 256-bit, 1360/1380 MHz, DVI, HDMI, Display Port
The Sweet Spot Performance
ASUS Dual series RX 580 comes equipped with Patented Wing-Blade Fans for max air flow with 105% more air pressure. The fans are IP5X dust-resistant for improved reliability and a longer lifespan. While exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking and instant gameplay streaming.
0dB Technology
Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below 55°C, letting you enjoy light gaming in complete silence.
IP5X-Certified Dust Resistance
Longer Fan Lifespan
The fans in ASUS Dual series of RX 580 graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ASUS Dual series of RX 580 graphics cards provide optimal fan performance, even under severe conditions.
Patented Wing-Blade Design
Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.
Auto-Extreme Technology with
Super Alloy Power II
Premium quality and best reliability
ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.
VR-Friendly HDMI Ports
Enjoy immersive virtual reality experience
ASUS Dual series of RX 580 graphics cards have two HDMI ports for connecting a VR device and display at the same time, so you can enjoy immersive virtual reality experiences anytime without having to swap cables.
GPU Tweak II with XSplit Gamecaster
GPU Tweak II:
Intuitive performance tweaking
Adjust clock speeds, voltages and fan speeds to tune your graphics card(s) exactly how you want to. Select between GPU Tweak’s Standard or Advanced modes depending on your level of experience.
Choose Standard Mode to access Intuitive options for easy tweaking. This is great for those learning how to tune graphics cards. Alternatively try out the Advanced Mode for sophisticated and extensive tuning options that enable complete control for experienced overclockers.
XSplitGamecaster:
Instant gameplay streaming
Now, you can also launch XSplit Gamecaster to bring up the in-game overlay and start streaming or recording your gameplay with the click of a button. You can also try the in-game annotations and video editor features to enhance your game stream experience.
