扩展槽
| PCI Express插槽版本 |
2.0 |
| PCI Express x16 插槽 |
1 |
背板输出端口
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
3 |
| PS/2连接埠数量 |
1 |
性能
| 音频系统 |
VIA VT1708S |
| 主板芯片组系列 |
AMD |
| 组件应用 |
PC |
内置输入/输出系统
| 前面板音频接头 |
Y |
| CPU风扇接口 |
Y |
| SATA II连接器数量 |
6 |
| ATX电源接头 |
Y |
| 机箱风扇接头数量 |
1 |
| USB 2.0接口 |
3 |
内存参数
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
另外
| 图形适配器 |
Radeon HD 6310 |
| 主板晶片 |
AMD A50M FCH |
| 以太网路(RJ-45)连接接口数量 |
1 |

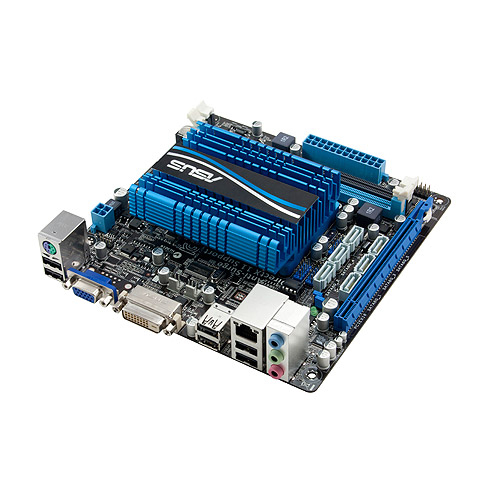

AMD Dual-Core E-350 (1.6GHz), AMD Radeon HD 6310, Gigabit Ethernet, Mini ITX
- Integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics
- Fanless Design Heatsink - Effective Fanless Heat Dissipation at 0dB
- All Solid Capacitors - Uses 100% All High-quality Conductive Polymer Capacitors
- EFI BIOS(EZ Mode) - Flexible & Easy BIOS Interface
- AI Suite II - One-stop Access to Innovative ASUS Features
- Native SATA 6Gb/s - Native Ports, Native Speed and Accessibility
<b>Integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics</b>
This motherboard supports integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features single-channel DDR3 1066 memory support and accelerates data transfer rate up to 2.5GT/s.
<b>AMD® FCH A50 (Hudson M1)</b>
AMD® FCH A50 (Hudson M1) is designed to support up to 2.5GT/s interface speed and PCI Express 2.0 x 16 (at x4 speed) graphics. It supports 6 x SATA6Gb/s ports and 14 x USB 2.0 Ports.
<b>Native SATA 6Gb/s Support</b>
The AMD® FCH A50 chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
<b>AI Suite II</b>
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage and sensor readings, even interact with mobile devices via Bluetooth. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.
<b>100% All High-quality Conductive Polymer Capacitors!</b>
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity
<b>Fanless Design Heatsink</b>
Effective Fanless Heat Dissipation at 0dB
The passive cooling solution provided by the large yet low profiled heatsink covering the CPU and the graphic processor, allows the powerful yet compact system to be cooled within limited spacing. With the additional support of fan headers, users are able to build compact yet flexible systems like never before.
<b>ASUS Q-Fan 2</b>
ASUS Q-Fan 2 technology intelligently adjusts CPU fan speed according to system loading to ensure quiet, cool and efficient operation.
<b>ASUS Anti-Surge Protection</b>
This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply(PSU).
<b>ASUS EZ DIY</b>
<b>EFI BIOS (EZ Mode)</b>
<b>Flexible, Easy BIOS Interface</b>
ASUS brand new EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard only BIOS, to enable more flexible and convenient mouse controls. Users can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.
<b>EZ-Flash 2</b>
<b>Simply update BIOS from a USB flash disk before entering the OS</b>
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
<b>CrashFree BIOS 3</b>
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
