性能
| 主板元件 |
Micro ATX |
| 英特尔®快速存储技术 |
Y |
| 主板芯片组系列 |
Intel |
| 音频输出通道数量 |
8.1 channels |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 英特尔®图形技术处理器 |
Y |
| 音频系统 |
HD |
| 组件应用 |
PC |
| 可支持的Windows操作系统 |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64 |
内存参数
| 可支持内存时钟速度 |
1333, 1600, 1866 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM, DDR3L-RS-SDRAM, DDR3L-SDRAM |
| 内存插槽类型 |
DIMM |
| 最大内部存储 |
32 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
5.0 |
内置输入/输出系统
| USB 2.0接口 |
6 |
| S/PDIF输出端口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
4 |
| SATA III连接器数量 |
4 |
| 支持存储驱动器界面 |
Serial ATA III |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
1 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
内容包装
| 包含电缆 |
SATA |
| 包括驱动器 |
Y |
| 捆绑软件 |
ASUS Utilities\nASUS EZ Update \nAnti-virus software (OEM version) |
图像
| 最大图形显示内存 |
1024 MB |
| 图形适配器系列 |
Intel |
| 支持的显示器数量 |
2 |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| USB2.0端口的数量 |
4 |
| COM接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
处理器的特殊功能
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
Y |
| 英特尔®Turbo Boost技术 |
2.0 |
| 英特尔®清晰视频高清技术 |
Y |
处理器
| 处理器插槽 |
LGA 1151 (Socket H4) |
| 兼容处理器 |
Celeron, Core i3, Core i5, Core i7, Pentium |
另外
| InTru™3D技术 |
Y |
| 主板晶片 |
Intel H110 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

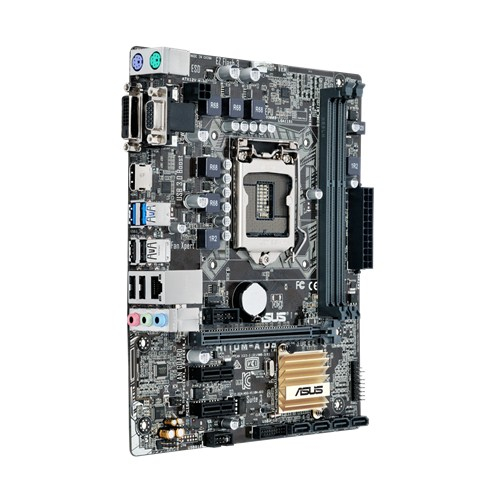

Intel H110, Socket 1151, DDR3 1866(O.C.)/1600/1333 MHz, 128 Mb UEFI AMI, HD Audio, Gigabit Ethernet, MicroATX
Full-featured micro-ATX H110 with 5X Protection II for dependable stability, LED-illuminated audio shielding, and flexible DDR3/DDR3L compatibility
5X Protection II – Advanced hardware safeguards for all-round protection
DDR3/DDR3L memory compatibility
Epic gaming audio with LED-illuminated shielding
Media-acclaimed UEFI BIOS with EZ Flash 3
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
Dedicated CPU and case fan controls
Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!
