性能
| 主板元件 |
Mini ITX |
| 主板芯片组系列 |
Intel |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333, 1600, 1866 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
32 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
5.0 |
内置输入/输出系统
| USB 2.0接口 |
4 |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
8 |
| SATA III连接器数量 |
6 |
| 周边（莫仕）电 源连接器（4针） |
1 |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
2 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
图像
| 最大图形显示内存 |
1024 MB |
| 支持的显示器数量 |
3 |
背板输出端口
| DVI-D接口数量 |
1 |
| S/PDIF输出接口 |
Y |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
6 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
处理器的特殊功能
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
Y |
| 英特尔®Turbo Boost技术 |
2.0 |
| 英特尔®清晰视频高清技术 |
Y |
另外
| InTru™3D技术 |
Y |
| 主板晶片 |
Intel H170 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel H170, LGA 1151, DDR3 1866(O.C.)/1600/1333 MHz, 128 Mb UEFI AMI BIOS, ACPI 5.0, HD audio, Gigabit Ethernet

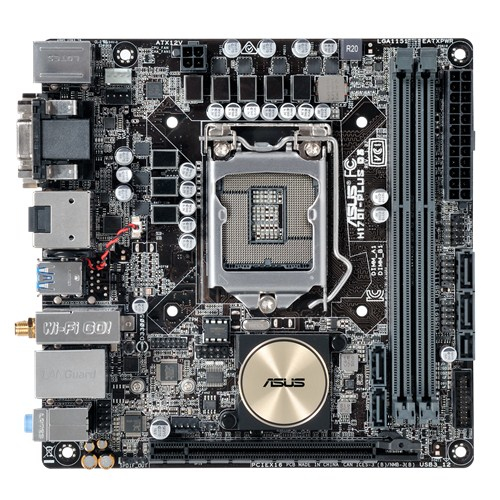

Supreme mini-ITX H170 with onboard 802.11ac Wi-Fi, M.2 transfer, and 5X Protection II for dependable stability
- 5X Protection II – Advanced hardware safeguards for all-round protection
- DDR3/DDR3L memory compatibility
- 2x2 Dual-Band 802.11ac + BT4.0 connectivity
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance
- Lightning-fast M.2 with PCIe® 3.0 x4 interface
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
ESD Guards
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
Ultrafast Transfer Speed
SATA Express
Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.
M.2
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
Total control anytime, anywhere with Wi-Fi GO!
Wi-Fi GO! gives you complete control of your PC — even when you're away from home. Access your forgotten files at home, and work on your PC from almost anywhere. Plus, it takes just one click to manage all your public clouds or sync files across your PC and devices!
Cloud GO!
Gather your ASUS WebStorage, Dropbox® , Google Drive™, and OneDrive® accounts in one place and even back up to PC at the same time.
Remote Desktop
Easily access and control your PC, anytime and anywhere!
File Transfer
Sync files between your PCs and smart devices with just a click!
Remote Keyboard & Mouse
Control media playback from your sofa!
Q-DIMM
Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!
Fan Xpert 2+
Advanced fan controls
With onboard thermal detection and hardware-level 4-pin/3-pin PWM/DC mode, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!
Auto-Tuning Mode: Scans and detects all fan characteristics for single-click customization.
RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.
