性能
| 主板元件 |
ATX |
| 主板南桥 |
AMD SB710 |
| 音频系统 |
ALC892 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600, 1800 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 内存通道支持 |
Dual |
| 最大UDIMM内存 |
16 GB |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
| 内置存储器 |
0.125 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
AMI |
| ACPI的版本 |
2.0a |
其他功能
| 操作特性 |
WOL by PME, WOR by PME, WOR by Ring, PXE |
内置输入/输出系统
| USB 2.0接口 |
3 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
5 |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| 火线接口数量 |
1 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱风扇接头数量 |
2 |
| 前面板音频接头 |
Y |
图像
| 最大图形显示内存 |
1024 MB |
| 板载图形适配器 |
Y |
| 图形适配器系列 |
AMD |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| S/PDIF输出接口 |
Y |
| eSATA端口数量 |
1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
3 |
| PCI Express x16 插槽 |
2 |
| PCI Express × 1插槽 |
1 |
| PCI Express插槽版本 |
2.0 |
另外
| 主板晶片 |
AMD 880G |
| 图形适配器 |
Radeon HD 4250 |
| 双dvi（互应式数字视频） |
Y |
| 系统总线 |
5.2 GT/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

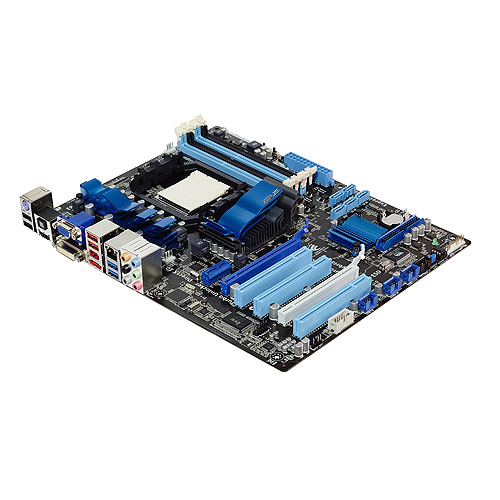

M4A88T-V EVO Motherboard - ATX, AM3, 4x DIMM (16GB) DDR3 2000(O.C.), HD 4250 GPU, Gigabit LAN, 8-Channel Audio I/O
AMD® AM3 Phenom™II /Athlon™II /Sempron™ 100 Series Processors
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.
AMD® 880G/SB710 Chipset
AMD® 880G Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.
SidePort Memory
This motherboard features SidePort Memory, an individual onboard DDR3 memory serving as memory buffer for integrated graphics. With low CPU usage, the SidePort Memory provides integrated graphics acceleration and effectively boosts graphics performance.
CrossFireX Support
Flexible Multi-GPU solutions, Your Weapon of Choice!
M4A88T-V EVO brings you the multi-GPU choice of CrossFireX™. Expect a brand-new gaming style you’ve never experienced before!
Dual-Channel DDR3 2000(O.C.)/1333/ 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2000 (O.C.) 1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
Core Unlocker
Intelligently Unlocks True Core Performance
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.
Turbo Key II
Switch on the Potential, Turn up the Performance!
Enjoy superb performance by auto-tuning your processor to an extreme yet stable state. Simply activate a dedicated switch on the motherboard to unleash extra processing capabilities.
Turbo Unlokcer
On demand real time CPU Boost!
Turbo Unlocker is the next evolution of an exclusive ASUS performance boost feature. One click in the TurboV EVO interface and Turbo Unlocker automatically and dynamically adjusts AMD Black Edition processor frequencies to speed up performance based on system load. Turbo Unlocker gets you in touch with more power when you need it.
TurboV EVO
The Ultimate O.C. Processor
The ultimate O.C. processor satisfies every level of overclockers—from die-hard enthusiasts to beginners. Auto tuning intelligently pushes the system to the fastest clock speeds while maintaining stability. Turbo Key boosts performance with just one touch; while TurboV offers more options to advanced overclockers to achieve world O.C. record. Moreover, upgrade your CPU at no additional cost with CPU Level UP!
ASUS AI Suite II
One stop access to cool ASUS features!
With its fast user-friendly interface, ASUS AI Suite II allows you to access exclusive ASUS features for overclocking system performance, energy management and fan speed control, voltage and sensor readings, even direct link to external devices. All in one place so you enjoy different functions without switching utilities back and forth.
Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading. Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
ASUS 8+1 Phase Power Design
Longer Life & Higher Efficiency!
Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes.
EPU
System Level Energy Efficiency
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-time–helping save power and money!
Anti-Surge Protection
This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply(PSU).
GreenASUS
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
