内置输入/输出系统
| ATX电源接头 |
Y |
| 并行ATA连接器 |
1 |
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
3 |
| 前面板音频接头 |
Y |
| CPU风扇接口 |
Y |
| SATA II连接器数量 |
6 |
| 机箱风扇接头数量 |
1 |
背板输出端口
| 并口数量 |
1 |
| COM接口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| PS/2连接埠数量 |
2 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
2 MB |
| 基本输入输出系统类型 |
AMI |
| ACPI的版本 |
2.0a |
内存参数
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
性能
| 主板南桥 |
AMD SB710 |
| 音频系统 |
Realtek ALC 887 |
| 主板芯片组系列 |
AMD |
| 组件应用 |
PC |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI 插槽 |
3 |
| PCI Express × 1插槽 |
2 |
另外
| 主板晶片 |
AMD 760G |
| 系统总线 |
5.2 GT/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

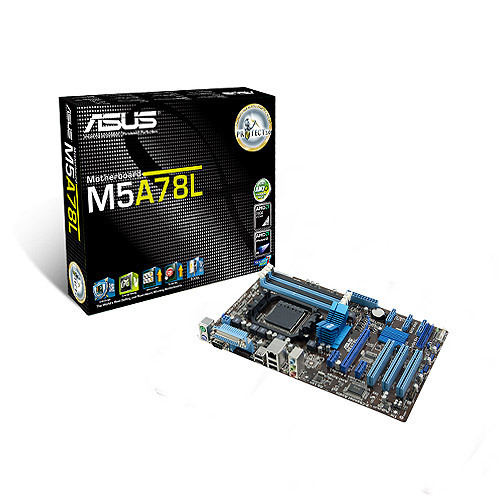

M5A78L, AM3+, AMD 760G (780L)/SB710, DDR3, Raid 0, 1, 10, JBOD, Gigabit Ethernet, ATX
This motherboard supports AMD® AM3+multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.
HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment.
Touch-n-Boost!
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
Intelligently Unlocks True Core Performance
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just pressing a key. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks.
