性能
| 主板芯片组系列 |
AMD |
| 主板南桥 |
AMD SB950 |
| 音频系统 |
Realtek ALC892 |
| 组件应用 |
PC |
内存参数
| 支持的内存类型 |
DDR3-SDRAM |
| 错误更正代码 |
Y |
| 无错误检测和更正 |
Y |
| 内存通道支持 |
Dual |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
内置输入/输出系统
| 火线接口数量 |
1 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 风扇电源接头 |
Y |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| PS电源接口 （8针） |
Y |
| SATA III连接器数量 |
6 |
| 前面板音频接头 |
Y |
| COM连接器数量 |
1 |
| 机箱风扇接头数量 |
2 |
| USB 2.0接口 |
3 |
其他功能
| 操作特性 |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
扩展槽
| PCI 插槽 |
2 |
| PCI Express x16 插槽 |
2 |
| PCI Express × 1插槽 |
1 |
背板输出端口
| eSATA端口数量 |
2 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| PS/2连接埠数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
基本輸出輸入系統/BIOS
| ACPI的版本 |
2.0a |
| BIOS内存大小 |
4 MB |
| 基本输入输出系统类型 |
UEFI |
另外
| 主板晶片 |
AMD 970 |
| 系统总线 |
4.8 GT/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

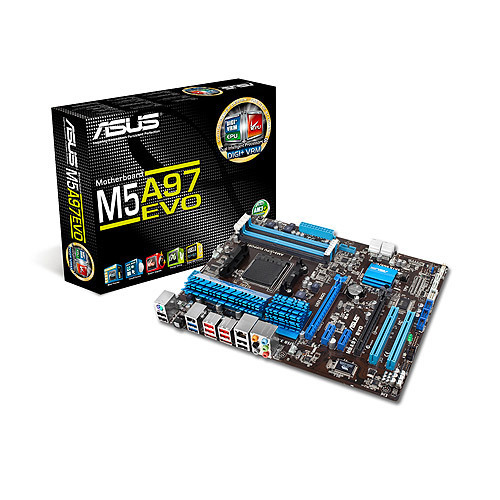

M5A97 EVO, AM3+, AMD 970/SB950, DDR3, SATA3, USB 2.0, USB 3.0, Gigabit Ethernet, ATX
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.
The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Its new generation of Dual Intelligent Processors 2 with DIGI+ VRM launches power delivery into a digital standard with a programmable microprocessor that perfectly serves power (SVID) requests from the CPU, eliminating digital-to-analog conversion lag. It’s the most precise power delivery available providing the best in class power efficiency, greater performance, and rock solid stability. With ASUS DIGI+ VRM, users can easily adjust power phase performance and system voltages via diverse settings in the intuitive UEFI interface.
The new ASUS DIGI+ VRM design upgrades motherboard power delivery to a digital standard. The digital architecture adjusts frequencies dynamically, cutting electromagnetic interference by half to enhance system stability through enabling VRM spread spectrum. System performance can also be customized with specific DRAM power control, including CPU/NB load line calibration for increased voltage range and increased CPU/NB current capability for up to an extra 30% current capacitance. The DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability, and greater power efficiency.
Unleash your performance with ASUS' simple onboard switch or AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning and TurboV functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations.
Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
