内存参数
| 支持的内存类型 |
DDR3-SDRAM |
| 无缓冲内存 |
Y |
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
| 内存插槽类型 |
DIMM |
| 内存通道支持 |
Dual |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
UEFI |
| 清除CMOS跳线 |
Y |
扩展槽
| PCI 插槽 |
3 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
| PCI Express x1（Gen 2.x）插槽 |
2 |
内置输入/输出系统
| SATA III连接器数量 |
6 |
| 风扇电源接头 |
Y |
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| 机箱风扇接头数量 |
2 |
| 前面板音频接头 |
Y |
| EATX电源接头数量 |
1 |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
性能
| 主板芯片组系列 |
AMD |
| 主板南桥 |
AMD SB950 |
| 超频功能 |
ASUS C.P.R. |
| 音频系统 |
HD Audio |
| 组件应用 |
PC |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
背板输出端口
| COM接口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| PS/2连接埠数量 |
2 |
另外
| 主板晶片 |
AMD 970 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 系统总线 |
5.2 GT/s |

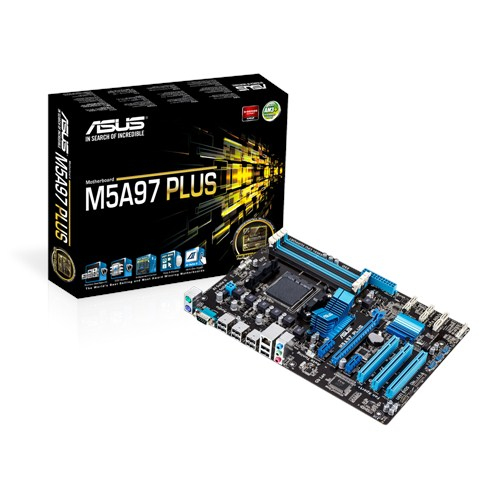

AMD AM3+, AMD 970/SB950, 4x DIMM, 6x SATA3 6Gb/s, RAID 0/1/5/10, CrossFireX, PCIe/PCI, Gigabit Ethernet, UEFI BIOS, ATX
<b>Instant OS Login</b>
ASUS has released new hardware and software designs to shorten system boot-up time to 2-seconds for a smoother user experience that removes annoying delays under Windows 8, and even previous versions of Windows. Faster system boot and restart means Windows starts quicker and higher efficiency - No more waiting around.
<b>Multi-startup Options</b>
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
<b>UEFI BIOS</b>
ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems.
<b>ASUS Exclusive Interface</b>
EZ Mode displays frequently-accessed info. Users can choose system performance settings and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.
<b>New Upgrade! Quick and Easy Info for Enhanced System Control</b>
- F12 BIOS snapshot hotkey for sharing UEFI setup info and troubleshooting
- New F3 Shortcut for most accessed info
- ASUS DRAM SPD (Serial Presence Detect) Information for accessing memory info, detecting faulty DIMMs and helping with difficult POST situations
<b>One-stop Access to Innovative ASUS Features</b>
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.
<b>Customizable speeds with independent fan control</b>
Hardware-level ASUS Fan Xpert+ allows users to independently adjust both CPU and case fan speeds with multiple dedicated controllers based on different ambient temperatures, climate conditions and system loads. Built-in profiles offer flexible automatic and manual fan speed controls to achieve a quiet and cool computing environment.
<b>100% All High-quality Solid Capacitors</b>
ASUS high-quality solid capacitors assure a 5,000 hours lifespan – equivalent to 2.5 times longer than traditional capacitors. All capacitors pass testing under temperatures as high as 105 degree and meet Japanese Industrial Standards to provide excellent durability and enhanced thermal capacity.
<b>Extra Durable Stainless Steel Back I/O</b>
ASUS Motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance the anti-corrosion properties . That’s why ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.
<b>SATA 6Gb/s Support</b>
AMD® SB950 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
<b>AMD® FX™-Series/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors (socket AM3+/AM3)</b>
M5A97 LE R2.0 supports AMD® AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1866 memory support and accelerates data transfer rate up to 4800MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.
<b>AMD® 970 Chipset</b>
AMD® 970 Chipset is designed to support up to 4800MT HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.
<b>GreenASUS and ErP Ready</b>
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
