内置输入/输出系统
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
3 |
| SATA III连接器数量 |
6 |
| 火线接口数量 |
1 |
| 前面板音频接头 |
Y |
| EATX电源接头数量 |
1 |
| 机箱防盗接口 |
Y |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
| SATA II连接器数量 |
2 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 风扇电源接头 |
Y |
| 机箱风扇接头数量 |
3 |
其他功能
| 控制器(2级)接口类型 |
JMicron JMB362 |
| 控制器接口类型 |
AMD SB950 |
| 操作特性 |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
32 MB |
| ACPI的版本 |
2.0a |
内存参数
| 错误更正代码 |
Y |
| 内存通道支持 |
Dual |
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
扩展槽
| PCI Express × 4插槽 |
1 |
| PCI Express插槽版本 |
2.0 |
| PCI Express x16 插槽 |
2 |
| PCI 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
背板输出端口
| PS/2连接埠数量 |
1 |
| eSATA端口数量 |
2 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
性能
| 音频系统 |
Realtek ALC 892 |
| 组件应用 |
PC |
另外
| 系统总线 |
5.2 GT/s |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 主板晶片 |
AMD 990X |

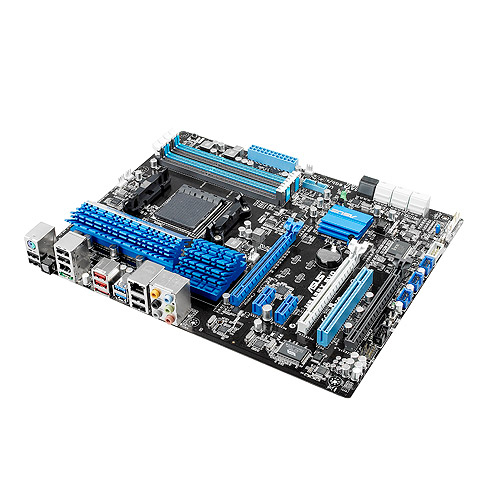

M5A99X EVO - ATX, AMD AM3+ FX, AMD 990X/SB950, 4 x DIMM, Max. 32GB, DDR3 2133MHz, 5.2 GT/s, 6 x SATA 6Gb/s, 2 x SATA 3Gb/s, Raid 0, 1, 5, 10, 4 x USB 3.0, 14 x USB 2.0, 32 Mb Flash ROM, UEFI BIOS
<b>Digital Power Design: The New Standard</b>
The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). The new generation of Dual Intelligent Processors 2 with DIGI+ VRM provides precise Vcore PWM, integrated graphics voltages and frequency module adjustments with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency.
<b>DIGI+ VRM</b>
Herald the Arrival of a New Digital Power Design Era
VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly. ASUS DIGI+ VRM features a digital programmable microprocessor onboard to perfectly match digital power signal (SVID) requests from the CPU, eliminating digital-to-analog conversion lag. The precise power delivery minimizes power transfer loss to provide highest power efficiency, greater performance, and rock solid stability with the most flexible power adjustment than traditional analog power design.
<b>TPU</b>
The Ultimate Turbo Processor
Unleash your performance with ASUS' simple onboard switch or AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning and TurboV functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations.
<b>EPU</b>
Energy Efficiency All Around
Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
<b>Auto Tuning</b>
Auto System Level Up
Achieve extreme yet stable overclocking results automatically with Auto Tuning! With built-in stability testing, Auto Tuning allows beginners to easily upgrade their CPU performance at no extra cost.
<b>UEFI BIOS (EZ Mode)</b>
Flexible & Easy BIOS Interface
Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
<b>Exclusive ASUS Interface</b>
- EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing
- Advanced Mode - for experienced performance enthusiasts that demand intricate system settings
<b>AI Suite II</b>
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.
<b>SATA 6Gb/s Support</b>
AMD® SB950 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
<b>Complete USB 3.0 Integration</b>
Double USB Access, Double Convenience
ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The M5A99X EVO affords greater convenience to high speed connectivity.
<b>AMD® Socket AM3+ for AMD® FX Series CPU up to 8-core</b>
AMD® FX™-Series / Phenom™ II / Athlon™ II / Sempron™ 100 Series Processors (socket AM3+/AM3)
M5A99X EVO supports AMD® AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1866 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.
<b>AMD® 990X Chipset</b>
AMD 990X Chipset is designed to support up to 5.2GT/s HyperTransport™ 3.0 (HT 3.0) interface speed and dual PCI Express™ 2.0 x16 graphics. It is optimized with AMD latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.
<b>Quad-GPU SLI and Quad-GPU CrossFireX Support!</b>
Flexible Multi-GPU solutions, Your Weapon of Choice!
M5A99X EVO brings you the multi-GPU choice of either SLI™ or CrossFireX. The motherboard features the most powerful AMD® 990X platform to optimize PCIe allocation in multiple GPU configurations. Expect a brand-new gaming style you’ve never experienced before!
<b>GreenASUS and ErP Ready</b>
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
